Set of equipment

WS2CE control valve ¹

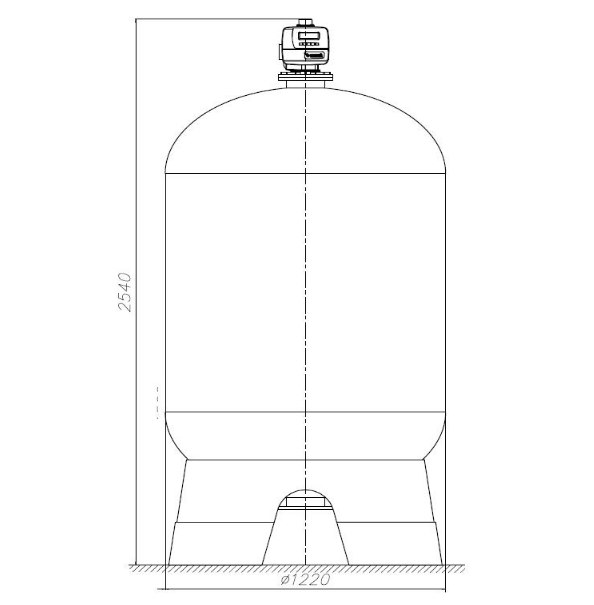

^‍Pressure tank 48x72, 6" ²

           ¹ WS2CE valve assembly (V2CEDТE):

• WS2CE control valve
• Top stack distributor, insert 50 mm
• Power supply
• Valve instruction manual, Instruction manual

             ² Pressure tank assembly

• Pressure tank 48x72, 6"
• Flange 6'' - 4''
• Adaptor 4" - 2"
• Riser DN 50 mm
• Connection kit
• Bottom stack distributor TMHL 48, 50 mm solvent

CE CONTROL VALVE KEY FEATURES

• Regeneration control by water volume : delayed regen, immediate, both
• Possibility to change the cycle of regeneration stages and their range of time
• Multilanguage menu : English, German, French, Ukrainian
• Different setting modes are available:

1. twin or duplex configurations
2. up to 6 systems to the system controller
3. 2 external devices simultaneously can be connected

SPECIFICATIONS

• Water flow rate*

          - Service (pressure drop 1 bar): 26.1 m³/h

          - Backwash (pressure drop 1.7 bar): 18.2 m³/h

• Inlet, outlet: G 2″
• Drine: G 1.5″
• Operating pressure: 2-6 bar
• Operating temperature: +4...+30 ^oC
• Electrical requirements: 230 V, 50 Hz
• Electrical power: 30 W
• Volume of pressure tank: 1895 L
• The volume of the rounded side: 245 L
• Dry system weight: 250 kg

RECOMMENDED MEDIA VOLUME

• Granular activated carbon Centaur 12x40: 405 kg***
• Activated Carbon Filtrasorb 300: 500 kg***
• Filter-AG PLUS media, 28.3 L bag: 990.5 L***
• Filter-AG material, 28.3 L bag: 990.5 L***
• Birm filter media, 28.3 L bag: 990.5 L***

The volume of filter material depends on the its characteristics. TDS on filter materials can be found on the official website www.ecosoft.com

***Recommended to use support layer, 400 Kg

ACCESSORIES**

• V3017 WS2 Service or Fill Switch Assembly
• V3076BSPT Motor Alternating Valve 2 BSPT Revision 2
• V3094BSPT WS2 Meter Assembly Male x Female BSPT

** Not included in the basic set. Can installed as additional equipment.
