Dimensions
Video
Image Size
DIMENSIONS, H×W×D:
1490×700×580
mm
Filter weight
110
kg
All media (3)
Video (1)
Dimensions
Commercial reverse osmosis systems are the reliable turnkey solutions for various commercial and residential applications. Water bottling plants, steam boilers, garden centers, restaurants and many other types of businesses take advantage of their excellent performance and durability.
Ecosoft controller OC5000
Easy to use thanks to smart architecture
Universal system construction allows connecting options of permeate flushing and raw water blending
Grundfos worldwide guaranty
CE marked and confirmed to be safe in accordance with EC New Approach Directives
Show More Features
Flow capacity
1000
L/h
Inlet water pressure
2..4
bar
Maximum TDS
3000
mg/L
Influent flow demand (service)
1300–1500
L/h
Operating pressure
8..12
bar
Power consumption
2
kW
Product
Box
Image Size
DIMENSIONS, H×W×D:
1490×700×580
mm
Filter weight
110
kg
Image Box
Dimensions, H×W×D:
1920×997×715
mm
Filter weight
150
kg
Equipment
- Grundfos® CM 3-14 pump
- 300 psi membrane vessels
- BB20 sediment prefilter
- Electrical panel with Ecosoft controller
- Danfoss solenoid valves
- Piping, instrumentation
- Steel frame
- Wooden crate
- PP melt blown sediment filter, 5 micron
Options
- Filmtec™ ХLE-4040 / LCLE-4040 or Ecosoft ELP-4040 membrane
- Dosing pump for antiscalant
- Versatile set for raw water blending (120...1080 L/h) or permeate flushing
Connections:
- influent water: 1"
- permeate: 1"
- concentrate: 1"
- antiscalant dosing port: ½″
- raw water blending port: ⅜″
- permeate flushing input port: 1"
Specifications
- Permeate capacity*: 1000 L/h
- Permeate recovery**: 75%
- Maximum TDS: 3000 mg/L
- Influent flow demand
- 1300…1500 L/h (service)
- 3000…4000 L/h (rinse) - Operation pressure: 8…12 bar
- Maximum pressure: 14 bar
- Electrical requirements: 230 V, 50 Hz (1 ph)
- Electrical power: 2.0 kW
- Prefilter rating: 5 μm

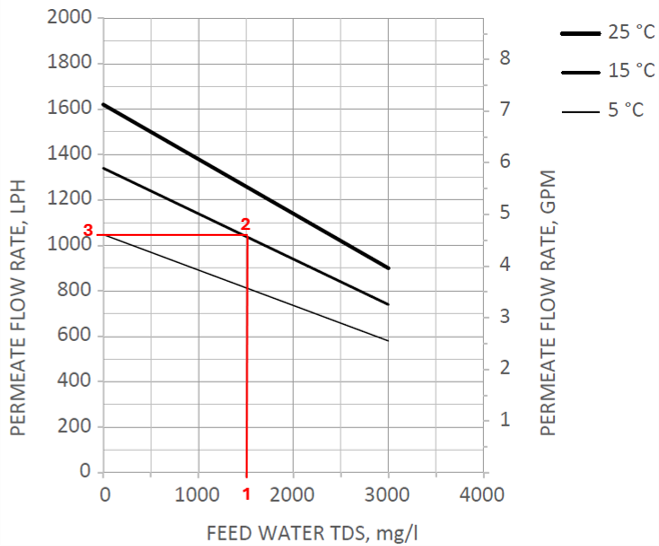

* depends on feed water TDS, temperature, and permeate recovery
** for low scaling/fouling water
Feed water requirements
- Influent water temperature: +5...+40 °С
- Residual chlorine, max: 0.1 mg/L
- Hardness: up to 3 meq/L (150 mg/L CaCO₃)
- Iron: up to 0.1 mg/L
- Manganese: up to 0.05 mg/L
- Silicate: up to 20 mg/L
- Chemical oxygen demand, max: 4.0 mg О₂/L
- Hydrogen sulfide: none
The limitations may be exceeded if using antiscalant, oxygen scavenger, or other RO chemical pretreatment.
OC5000 controller
The OC5000 controller is designed for automatic or manual control of reverse osmosis unit and provides:
- automatic switching on and off of the equipment upon signal;
- emergency shutdown of the equipment by signals from dry-running sensors, overpressure in the module;
- shutdown of equipment on the external STOP signal;
- hydraulic flushing of membranes;
- permanent quality control (electrical conductivity and temperature) of permeate.
Applications
- Steam boilers
- Heating and cooling circuits
- Breweries and beverage production
- Livestock and poultry farms
- Glazing factories
- Laundry and car wash
MO24000TP5
