Dimensions
Image Size
DIMENSIONS, H×W×D:
1625 × 490 × 340
mm
Filter weight
110
kg
All media (3)
Dimensions
Ecosoft reserves the right to amend the product's system architecture provided that its functionality and usability will not deteriorate.
Ecosoft controller OC6000
Easy to use thanks to smart architecture
Reliable and stable performance
Flexible flow adjustment for various feed water
Energy-efficient and global warranty thanks to Grundfos® pump
Show More Features
Flow capacity
500
L/h
Inlet water pressure
2..6
bar
Maximum TDS
10 000
mg/L
Influent flow demand (service)
800-1600
L/h
Operating pressure
15..20
bar
Power consumption
1.6
kW
Product
Box
Palette
Image Size
DIMENSIONS, H×W×D:
1625 × 490 × 340
mm
Filter weight
110
kg
Image Box
Dimensions, H×W×D:
1750 × 500 × 400
mm
Filter weight
140
kg
Image Palette
Pieces on pallet
4
pcs
Weight on pallet
560
kg
Equipment
- Grundfos® CRN 1-30 high pressure pump
- 450 psi membrane housing
- Ecosoft controller OC6000
- Purified water conductivity probe
- Electrical inlet valve
- Regulating needle valves
- AISI 304 Stainless steel frame
- AISI 316 Stainless steel piping
Options
- High rejection Filmtec™ membrane: LC LE PRO-4040
- High rejection LG™ membrane: LG BW 4040 ES
Connections:
- influent water — ¾"
- permeate — ½"
- concentrate — ½"
Specifications
- Permeate capacity* — 500 L/h

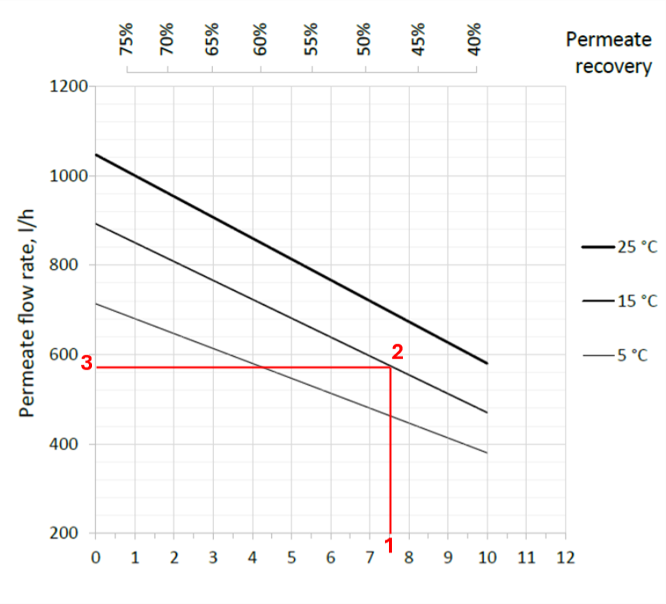

- Permeate recovery** — depends on feed water TDS
- Maximum TDS — 10 000 mg/L
- Influent flow demand (service) — 800…1600 L/h
- Operation pressure — 15…20 bar
- Maximum pressure — 25 bar
- Electrical requirements — 230 V, 50 Hz (1 ph)
- Electrical power — 1.6 kW
* depends on feed water TDS, temperature, and permeate recovery
** for low scaling/fouling water
Applications
- Process water
- Rinse water
- Steam boilers
- Heating and cooling circuits
- Agriculture
- Desalination
- Food and beverage
- Utility water treatment
MO12000BI61
