All media (21)
Dimensions
Image Size
DIMENSIONS, H×W×D:
470 х 270 х 430
mm
Filter weight
18
kg
All media (21)
Dimensions

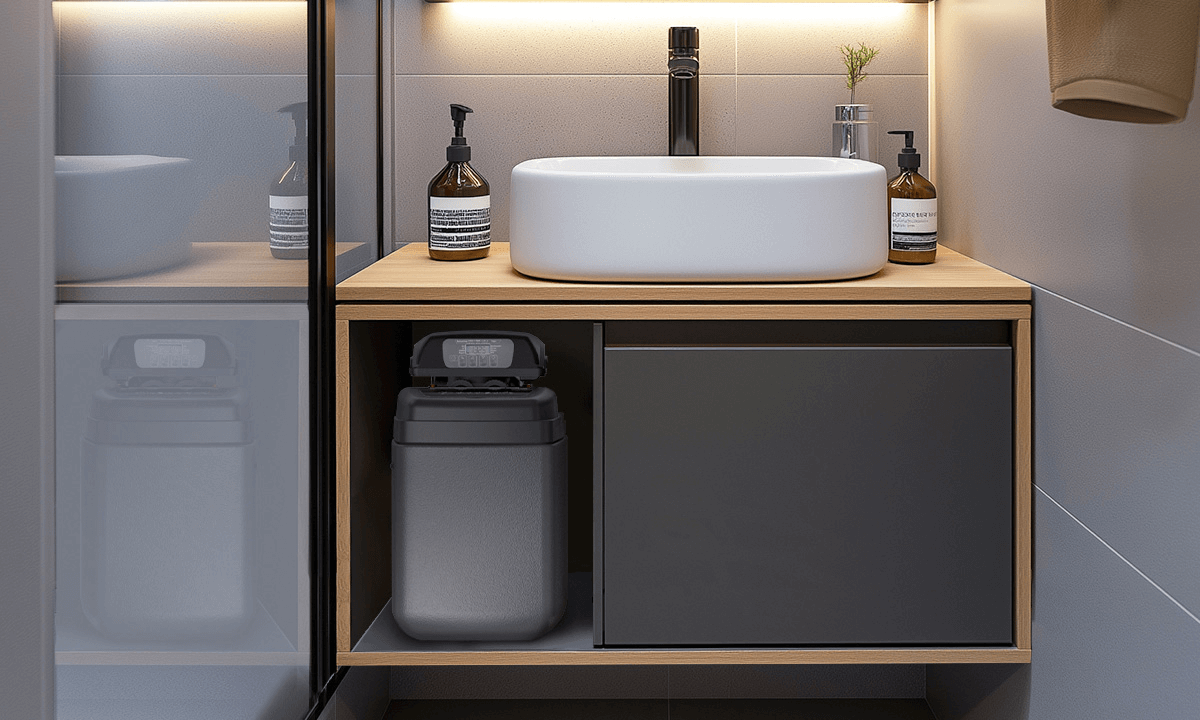

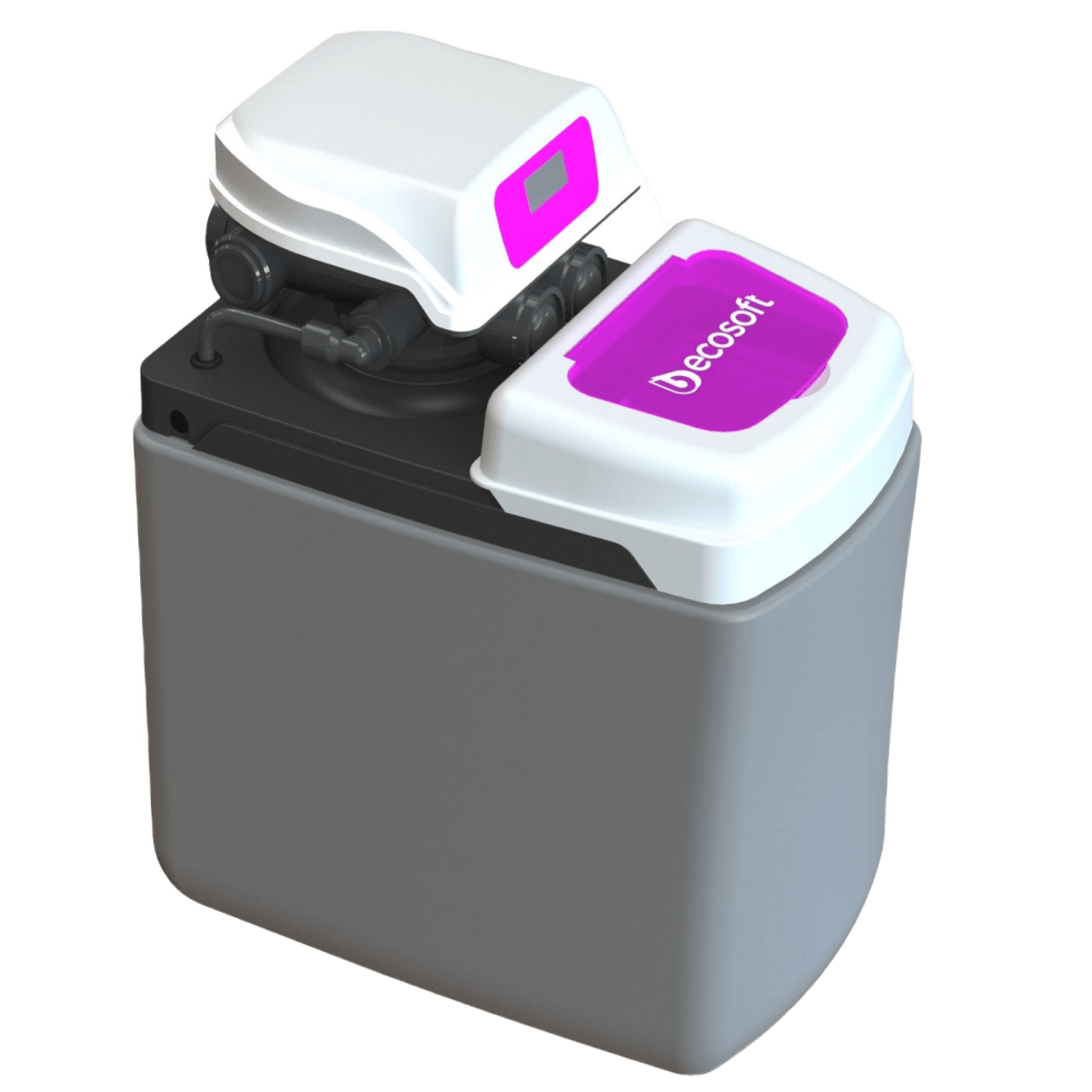

Ultra-compact dimensions and Clack® DV valve make these softeners both space-saving and reliable. The compact design of the smallest model is combined with high flow and softening capacity due to the unique 10×13 mineral tank size, it fits easily under the kitchen sink.
Ultra-compact dimensions, height 470 mm
Reliable US-made Clack® DV with mixing valve
Up-flow proportional regeneration for smart consumption
Effective salt consumption: 80 grams per liter of resin or less
Water-saving: uses up to 100 liters for regeneration
Show More Features
Flow rate
1.2
m³/h
Quantity of resin
10
L
Volume capacity
2
m³
Usage of salt per regeneration
1.0
kg
Height
470
cm
Usage of water per regeneration
0.08
m³
Product
Box
Palette
Image Size
DIMENSIONS, H×W×D:
470 х 270 х 430
mm
Filter weight
18
kg
Image Box
Dimensions, H×W×D:
290 х 480 х 490
mm
Filter weight
18
kg
Image Palette
Pieces on pallet
24
pcs
Weight on pallet
472
kg
Components
- Pre-adjusted US-made Clack® DV with mixing valve
- Cabinet enclosure
- Pressure tank
- Brine well with safety float valve
- Ion-exchange resin DOWEX™ HCR-S/S
Technical specifications
- Operating Flow rate: 1.2 m³/h
- Quantity of media: 10 L
- Volume capacity*: 2 m³
- Usage of salt per regeneration**: 0.8 kg
- Usage of water per regeneration: 0.08 m³
- Duration of regeneration: 80–110 minutes
- Pressure drop in service mode: 0.5 bar
- Inlet pressure: 2–6 bar
- Electrical requirements: 230 V, 50 Hz
- Power consumption: 30 W
- Inlet/outlet pipe connections: 3/4’’
*for hardness at 5 meq/L (250 mg/L CaCO₃)
**it is recommended to use Ecosil pelletized salt for regeneration
Influent water limitations
- Hardness: ≤15 meq/L (750 mg/L CaCO₃)
- Iron: ≤0.2 mg/L
- Manganese: 0.05 mg/L
- Required level of purification of sediment particles: 100 μm
- Initial water temperature: +4…+30 °С
FU1013CABDVUPBT
