Dimensions
Video
Image Size
DIMENSIONS, H×W×D:
297 x 45 x 45
mm
Filter weight
kg
All media (3)
Video (1)
Dimensions

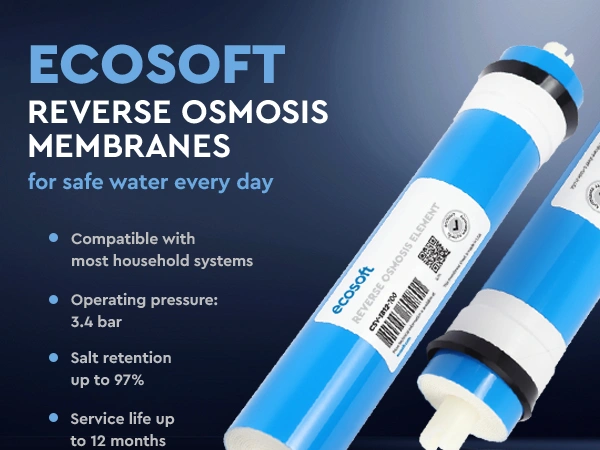

Ecosoft membrane element is designed to deliver consistent, high-quality purified drinking water.
The production of Ecosoft membrane elements is a highly effective process using the industry’s leading membrane flat sheet and the experience of the Ukrainian manufacturer.
Full 15 L pressure tank in 60 minutes
Full capacity even in 15 °C water temperature
High selectivity — 97%
Individually vacuum-tested
Shipped dry
Show More Features
Product
Image Size
DIMENSIONS, H×W×D:
297 x 45 x 45
mm
Filter weight
kg
Specifications
Membrane type — spiral-wound element with polyamide thin-film composite
- Membrane element type: 100 GPD
- Permeate volume: 15 L/hour
- Stabilized salt rejection: 97.0 %
- Applied pressure: 3.4 bar
- Purpose: domestic
Operating parameters
- Maximum operating water temperature: 45 °C
- Maximum operating pressure: 3.4 bar
- Maximum element pressure drop: 1.0 bar
- pH range, continuous operation: 3-11
- Maximum Feed Silt Density Index (SDI): 5
- Free chlorine tolerance: < 0.1
CSV1812100ECO
