Dimensions
Image Size
DIMENSIONS, H×W×D:
1094 х 360 х 565
mm
Filter weight
30
kg
All media (21)
Dimensions
With up-flow proportional brining, a high flow rate is up to 3 m³ of water per hour, and a large salt capacity. These softeners provide low salt consumption, easy maintenance, and efficiency. A full tank of salt is enough for a 15-month run before the next salt refill.

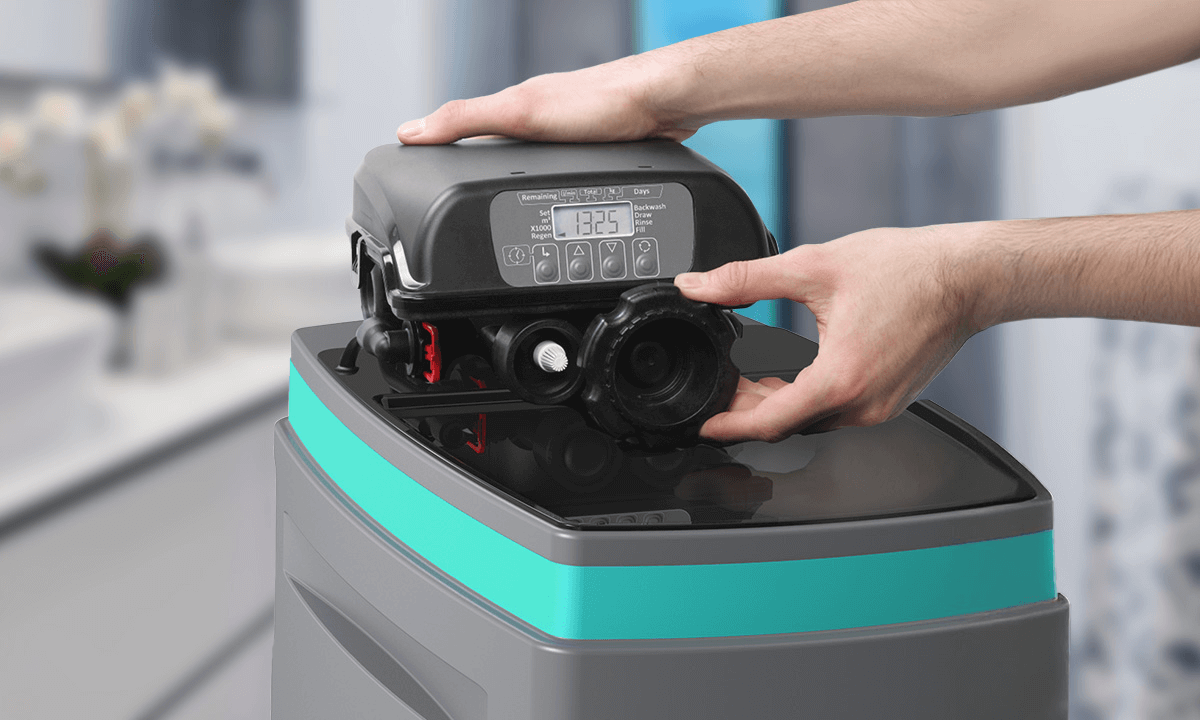

Reliable US-made Clack® DV valve with diamond-carbon coating
Increased salt capacity: up to 130 kg
Built-in mixing valve
Up-flow proportional regeneration for smart consumption
Effective salt consumption: up to 80 grams per liter of resin or less
Water-saving: 100 liters for regeneration
Show More Features
Flow rate
2.0–2.5
m³/h
Quantity of resin
25
L
Volume capacity
5.0
m³
Usage of salt per regeneration
2.0–4.0
kg
Operating time before salt refill
15
months
Usage of water per regeneration
0.10–0.25
m³
Product
Box
Palette
Image Size
DIMENSIONS, H×W×D:
1094 х 360 х 565
mm
Filter weight
30
kg
Image Box
Dimensions, H×W×D:
1092 х 363 х 600
mm
Filter weight
36
kg
Image Palette
Pieces on pallet
5
pcs
Weight on pallet
215
kg
Components
- Pre-adjusted Clack® DV
- Cabinet enclosure
- Pressure tank
- Brine well with safety float valve
Technical specifications
- Operating flow rate: 2.0 m³/h
- Maximum flow rate: 2.5 m³/h
- Quantity of DOWEX® HCR-S/S: 25 L
- Volume capacity*: 5 m³
- Usage of salt per regeneration**: 2.0–4.0 kg
- Usage of water per regeneration: 0.10–0.25 m³
- Duration of regeneration: 80–100 minutes
- Pressure drop in service mode: 0.5 bar
- Inlet pressure: 2–6 bar
- Electrical requirements: 230 V, 50 Hz
- Power consumption: 30 W
- Inlet/outlet pipe connections: 1’’
*for hardness at 5 meq/L (250 mg/L CaCO₃)
**it is recommended to use Ecosil pelletized salt for regeneration
Feed water requirements
- Hardness: ≤15 meq/L (750 mg/L CaCO₃)
- Iron: ≤0.2 mg/L
- Manganese: ≤0.05 mg/L
- Required level of purification of sediment particles: 100 μm
- Initial water temperature: +4…+30 °С
FU1035CABGDV
