Purification technology

DOWEX® HCR-S/S — provides softened water. Arctic Blue series filters remove hardness.

Control valve

Ecosoft Clack WS1 CE (time and volume regenerated).

Components

1. Pre-adjusted Ecosoft-Clack CE

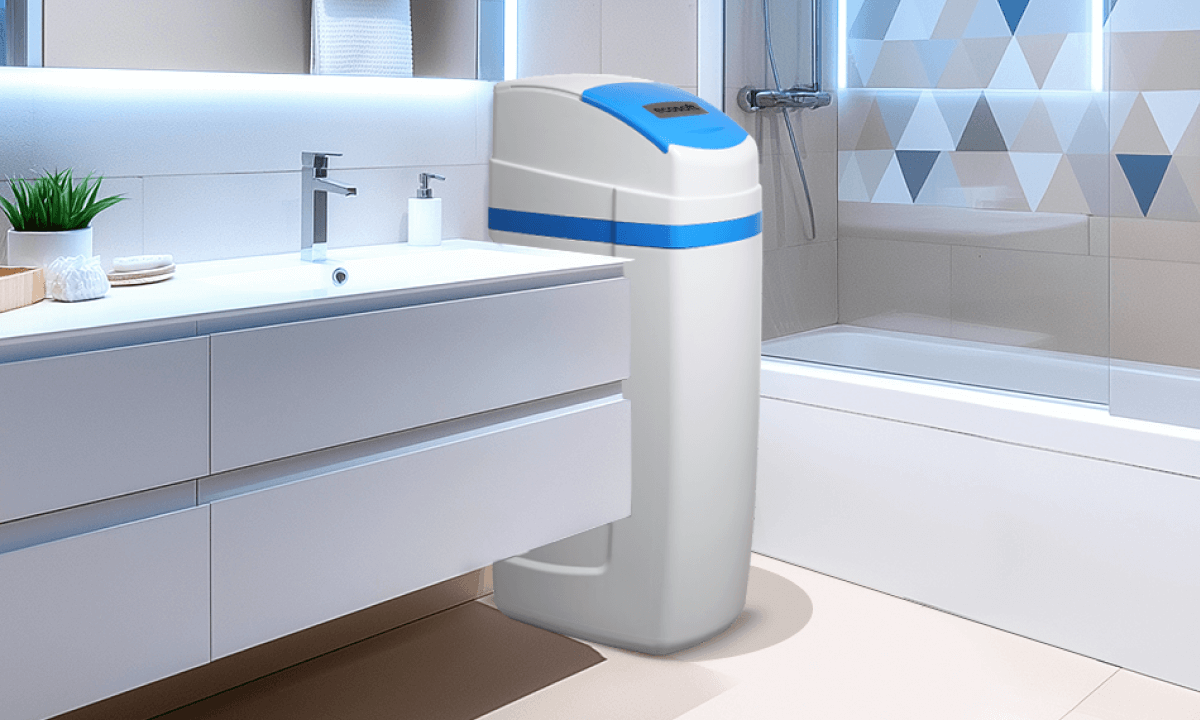

2. Cabinet enclosure
3. Pressure tank
4. Brine well with safety float valve

Options

• Inline bypass assembly
• Inline external mixing valve
• Motorized No Hard Water Bypass Valve for bypass shutoff during regeneration
• Microswitch (regeneration activated)

Technical specifications

• Operating flow rate: 1.5 m³/h
• Maximum flow rate: 2.0 m³/h
• Quantity of f DOWEX® HCR-S/S: 25 L
• Volume capacity*: 5 m³
• Usage of salt per regeneration**: 2.5–4.0 kg
• Usage of water per regeneration: 0.25 m³
• Duration of regeneration: 80–110 minutes
• Pressure drop in service mode: 0.5 bar
• Inlet pressure: 2–6 bar
• Electrical requirements: 230 V, 50 Hz
• Power consumption: 30 W
• Inlet/outlet pipe connections: 1’’

*for hardness at 5 meq/L (250 mg/L CaCO₃)

**it is recommended to use Ecosil pelletized salt for regeneration

Feed water requirements

• Hardness: ≤15 meq/L (750 mg/L CaCO₃)
• Iron: ≤0.2 mg/L
• Manganese: ≤0.05 mg/L
• Required level of purification of sediment particles: 100 μm
• Initial water temperature: +4…+30 °C
