Purification technology

ECOMIX® A — provides iron-free crystal clear soft water with bluish tint. Ecosoft Titanium Gold series filters reduce iron, hardness, manganese, ammonium, and organic matter.

Components

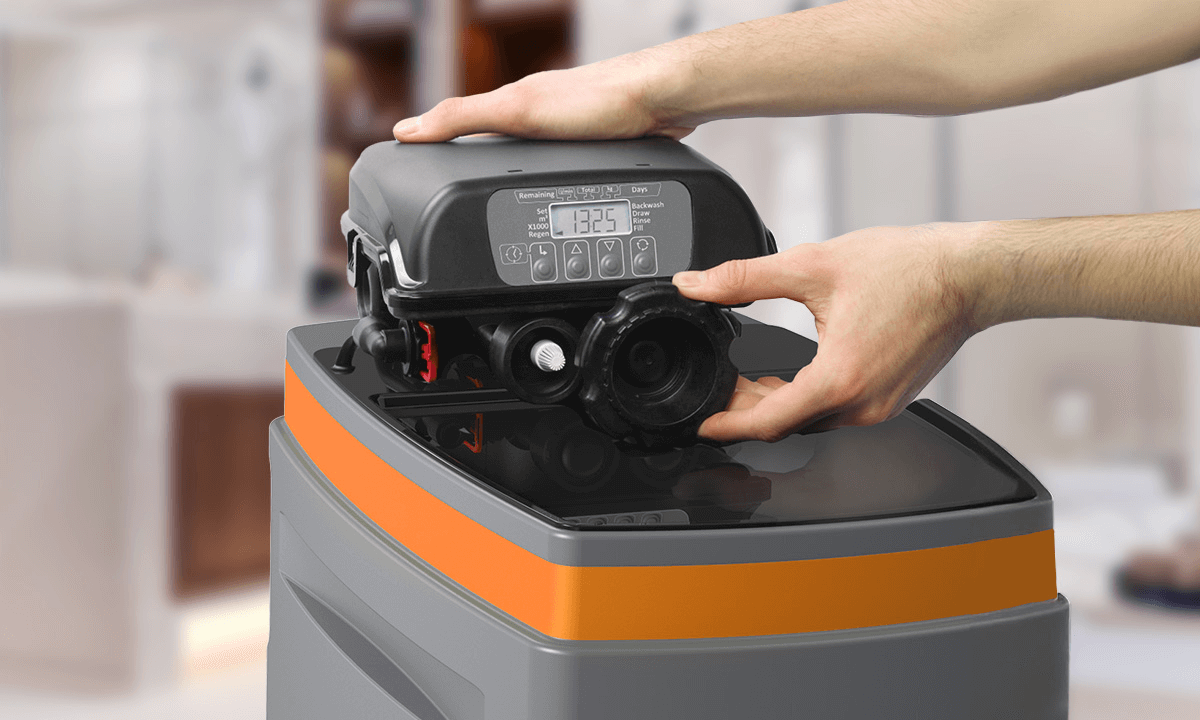

1. Pre-adjusted Clack DV
2. Cabinet enclosure
3. Pressure tank
4. Brine well with safety float valve

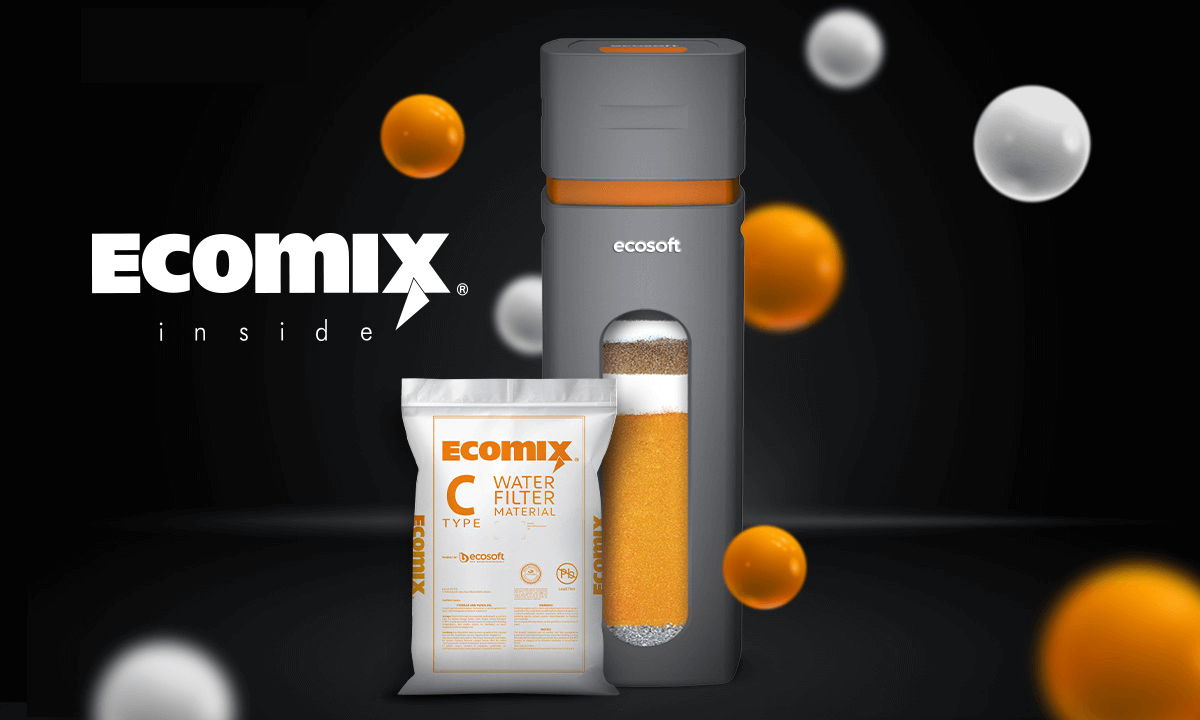

5. Ecomix® A

Technical specifications

• Operating flow rate: 1.4 m³/h
• Maximum flow rate: 1.8 m³/h
• Quantity of ECOMIX®: — 37 L
• Volume capacity*: 4.5 m³
• Usage of salt per regeneration**: 3.7–6.0 kg
• Usage of water per regeneration: 0.37 m³
• Duration of regeneration: 80–110 minutes
• Pressure drop in service mode: 0.5 bar
• Inlet pressure: 2–6 bar
• Electrical requirements: 230 V, 50 Hz
• Power consumption: 30 W
• Inlet/outlet pipe connections: 1’’

*for hardness at 5 meq/L (250 mg/L CaCO₃)

**it is recommended to use Ecosil pelletized salt for regeneration

Feed water requirements

• Hardness: ≤15 meq/L (750 mg/L CaCO₃)
• Iron: ≤15 mg/L
• Manganese: ≤3 mg/L
• Chemical oxygen demand: ≤20 mgO₂/L
• Ammonium: ≤4 mg/L
• Required level of purification of sediment particles: 100 μm
• Initial water temperature: +4…+30 °С
