Set of equipment

1. CI 1" valve assembly (V1CIDM):

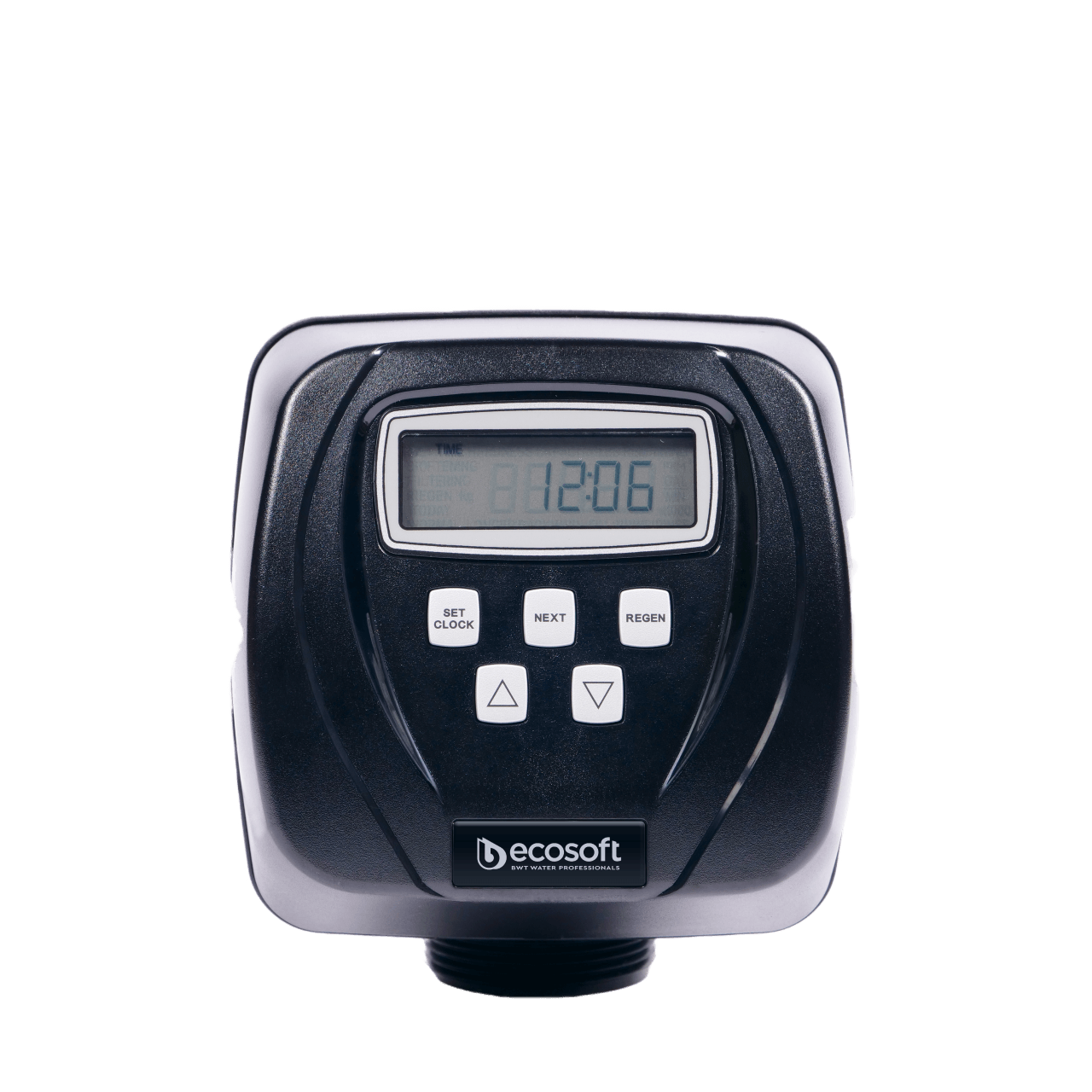

• CI 1" control valve
• Top stack distributor, 11 segments
• Connection kit 1''
• Power supply
• Injector, DLFC - for Ecomix and cation exchange resin
• Funnel
• Valve instruction manual

2. Pressure tank assembly

• Motorized Pressure tank 13x54, 2.5"
• Riser
• Bottom stack distributor

3. Brine tank

• Brine tank 18x26, 100 L
• Brine well assembly (brine valve, overflow set)

CI CONTROL VALVE KEY FEATURES

• ‍Regeneration control by water volume: delayed regen, immediate, both
• Possibility to change the cycle of regeneration stages and their time range
• Program in ppm, French degrees, German degrees, or cubic meters
• Stores system configuration and operation data in nonvolatile memory

        Different setting modes are available:

          - Twin or duplex configurations

          - Up to 6 systems in the system controller

SPECIFICATIONS

• Water flow rate*

          - Service (pressure drop 1 bar): 6.0 m³/h

          - Backwash (pressure drop 1.7 bar): 6.0 m³/h

• Inlet, outlet: G 1″
• Drine: G 1″
• Brine line: G 3/8″
• Operating pressure: 2-6 bar
• Operating temperature: +4...+30 ^oC
• Electrical requirements: 230 V, 50 Hz
• Electrical power: 30 W
• Volume of pressure tank: 105 L
• Volume of brine tank: 100 L
• The volume of the rounded side: 6 L
• Dry system weight: 21 kg

* Only for Clack WS1 CI control valves includes meter, bypass, and 1" fitting kit

RECOMMENDED MEDIA VOLUME

• Ecomix Type C filter media: 62 L
• Ecomix Type A filter media: 62 L
• Ecomix Type P filter media: 62 L
• HCRS-S Strong acid cation exchange resin: 75 L
• PC002 Strong acid cation exchange resin: 75 L

The volume of filter material depends on its characteristics. TDS on filter materials can be found on the official website www.ecosoft.com

ACCESSORIES**

• V3006 WS1 Bypass Assembly
• V3009 WS1 Auxiliary Microswitch Assembly
• V3070FM Bypass shut-off valve during regeneration (no-Bypass valve) for 1" and 1.25" systems
• V3069MM-01 Water Specialist 1” & 1.25” Motorized Alternating Valve
• V3191-01 WS1 Bypass Vertical Adapter Assy

** Not included in the basic set. Can be installed as additional equipment.
