Softener assy w/o resin 12x52. 1" CI valve: Buy Softener assy w/o resin 12x52. 1" CI valve, RF1252CI at the best price

Softener assy w/o resin 12x52. 1" CI valve at the best price ⏩ Quality is approved by ISO and CE certificates ⭐ 12 months warranty of Softener assy w/o resin 12x52. 1" CI valve ✔️ Timely delivery of our products to any country of the world ⚡ More than 60 countries.

Filter Systems

Softener assy w/o resin 12x52. 1" CI valve

RF1252CI

Ecosoft

SOFTENER ASSY RF1252CI W/O MEDIA, 1" CE VALVE

Video

Parameters

Media volume

Control valve

Clack CI 1"

Pressure tank

12x52, 2,5"

Electrical power

Volume of pressure tank

Volume of brine tank

100

Specification

Set of equipment

CI 1" control valve ¹

^‍Pressure tank 12x52, 2,5"²

Brine tank ³

¹CI 1" valve assembly (V1CIDM):

CI 1" control valve
Top stack distributor, 11 segments
Connection kit 1''
Power supply
Injector, DLFC - for Ecomix and cation exchange resin
Funnel
Valve instruction manual, instruction manual

²Pressure tank assembly

Pressure tank 12x52, 2,5"
Riser
Bottom stack distributor

³Brine tank assenbly

Brine tank 18x26, 100 L
Brine well assembly (brine valve, overflow set)

CI CONTROL VALVE KEY FEATURES

‍Regeneration control by water volume: delayed regen, immediate, both
Possibility to change the cycle of regeneration stages and their range of time
Program in ppm, French degrees, German degrees, or cubic meters
Stores system configuration and operation data in nonvolatile memory

Different setting modes are available:

- Twin or duplex configurations

- Up to 6 systems to the system controller

SPECIFICATIONS

Water flow rate*

- Service (pressure drop 1 bar) - 6,0 m³/h

- Backwash (pressure drop 1,7 bar) - 6,0 m³/h

* Only for Clack WS1 CI control valves includes meter, bypass, and 1" fitting kit

RECOMMENDED MEDIA VOLUME

Ecomix Type C filter media - 50 L
Ecomix Type A filter media - 50 L
Ecomix Type P filter media - 50 L
HCRS-S Strong acid cation exchange resin - 62 L
PC002 Strong acid cation exchange resin - 62 L

The volume of filter material depends on the its characteristics. TDS on filter materials can be found on the official website www.ecosoft.com

ACCESSORIES**

V3006 WS1 Bypass Assembly
V3009 WS1 Auxiliary Microswitch Assembly
V3070FM Bypass shut-off valve during regeneration (no-Bypass valve) for 1" and 1.25" systems
V3069MM-01 Water Specialist 1” & 1.25” Motorized Alternating Valve
V3191-01 WS1 Bypass Vertical Adapter Assy

** Not included in the basic set. Can installed as additional equipment.

Weight & measurements

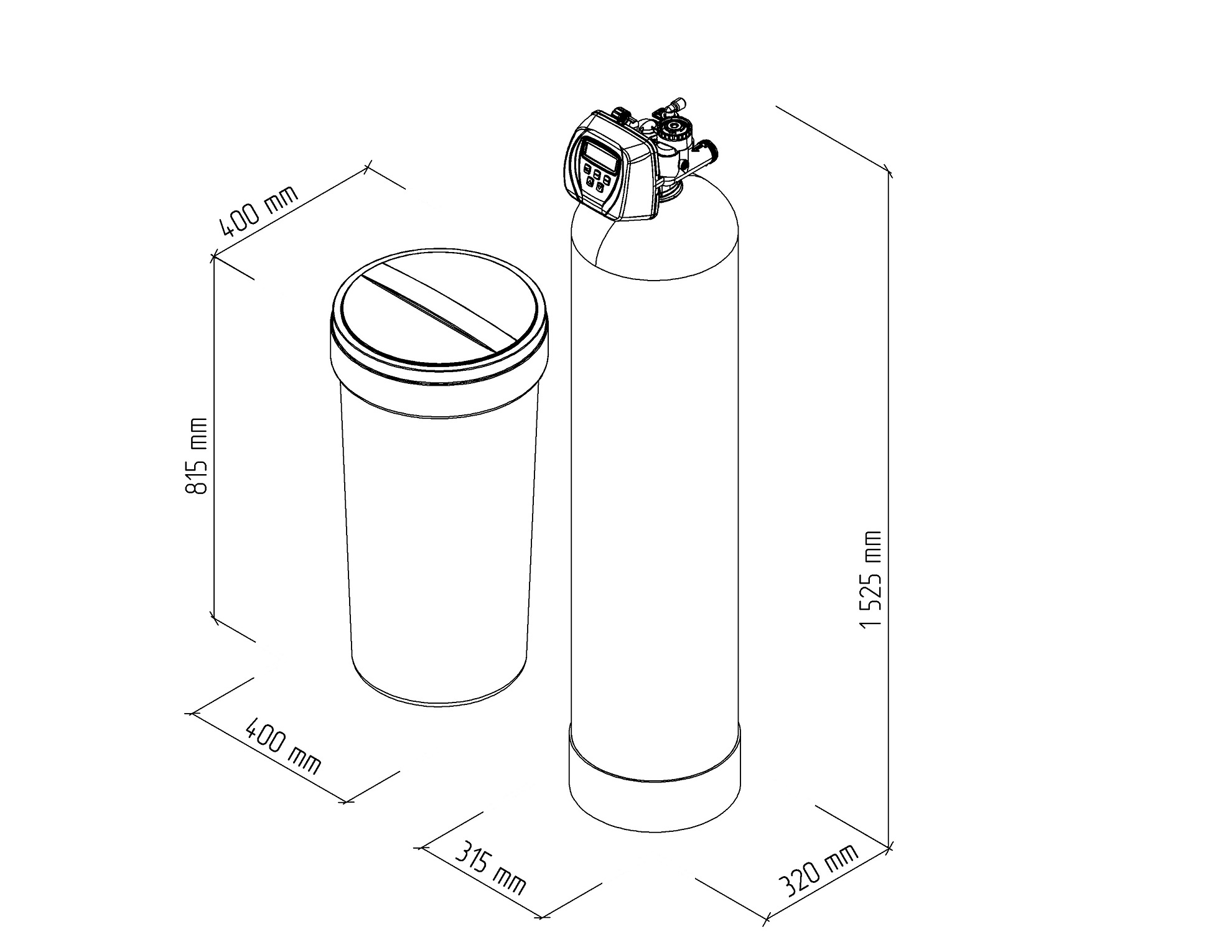

Dimensions, H×W×D:

1525 x 715 x 400

Filter weight

Dimensions, H×W×D:

Filter weight

Pieces on pallet

pcs

Weight on pallet
