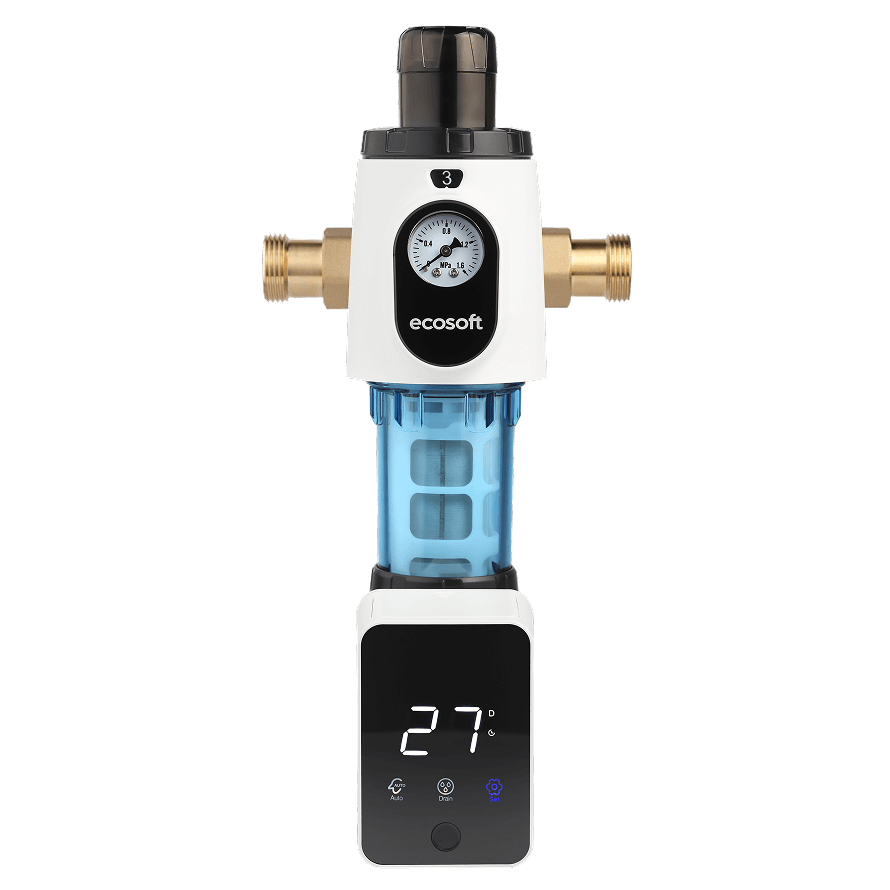

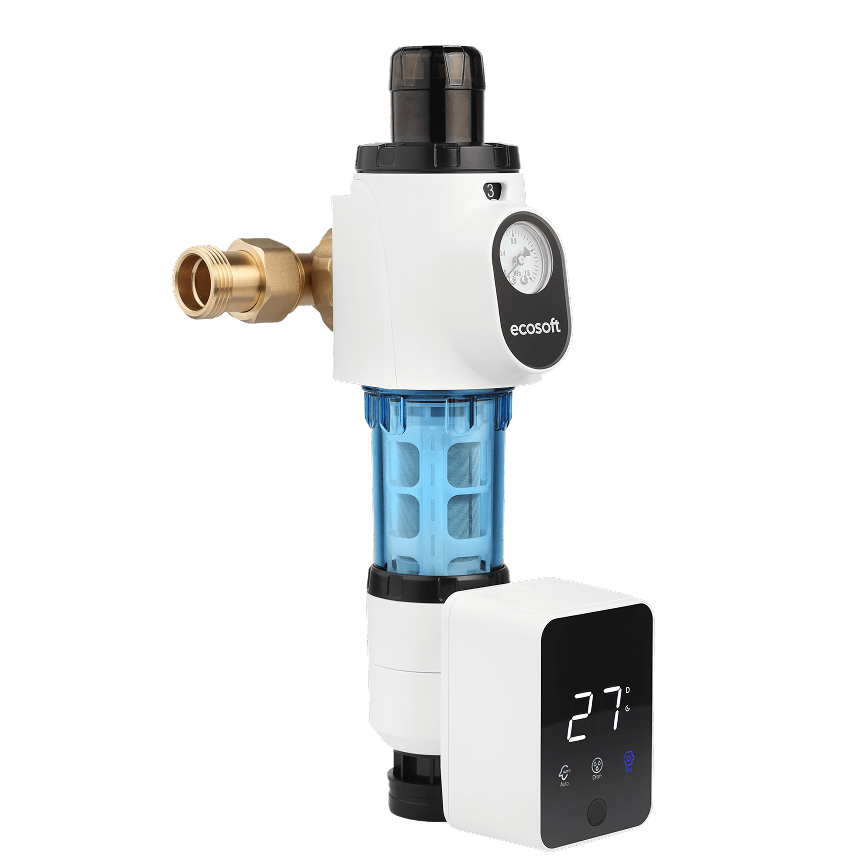

The ERIC SC is a high-performance sediment filter designed to tackle problem water effectively. It removes dirt, sand, and rust, ensuring cleaner and safer water for your home. Fully automatical flushable are making it long-lasting and cost-effective. It is also iron resistant, preventing clogging and maintaining optimal performance over time intervention.
WATER SOURCE: Tap or well water supply.
The ERIC SC operates on an advanced automatic flushing system, which periodically cleans the filter mesh without the need for manual intervention. The built-in control module allows users to set the flush cycle by days and time, ensuring optimal performance and extended lifespan of the filtration system. The 360° deep-cleaning mechanism utilizes water and a scraper system to remove trapped particles efficiently.
Technical Specifications
- Clamping: Threaded
- Max. Working Pressure: 10 bar
- Working Temperature: From 5°C (41°F) to 40°C (104°F)

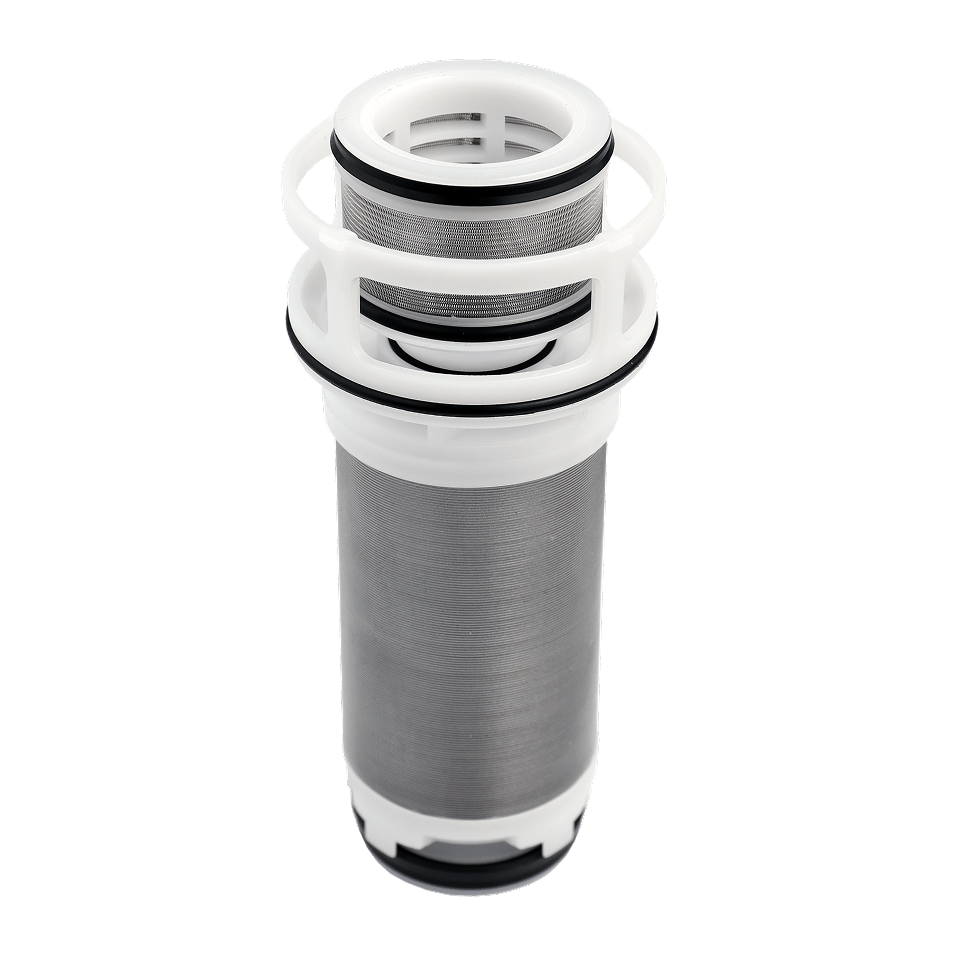

- Cartridge: 316 stainless steel mesh
- Cartridge Type: Washable
- Filtration Rating: 40 µm
- Flow Rate: 4 000 l/h
- IN/OUT Threads: 1" G thread
- Rinse Outlet: 3/8" collet
- Power Supply: 100-240 V, 50-60 Hz
- Power Consumption: 5 W
- Control Module: Battery-powered (3×AA)

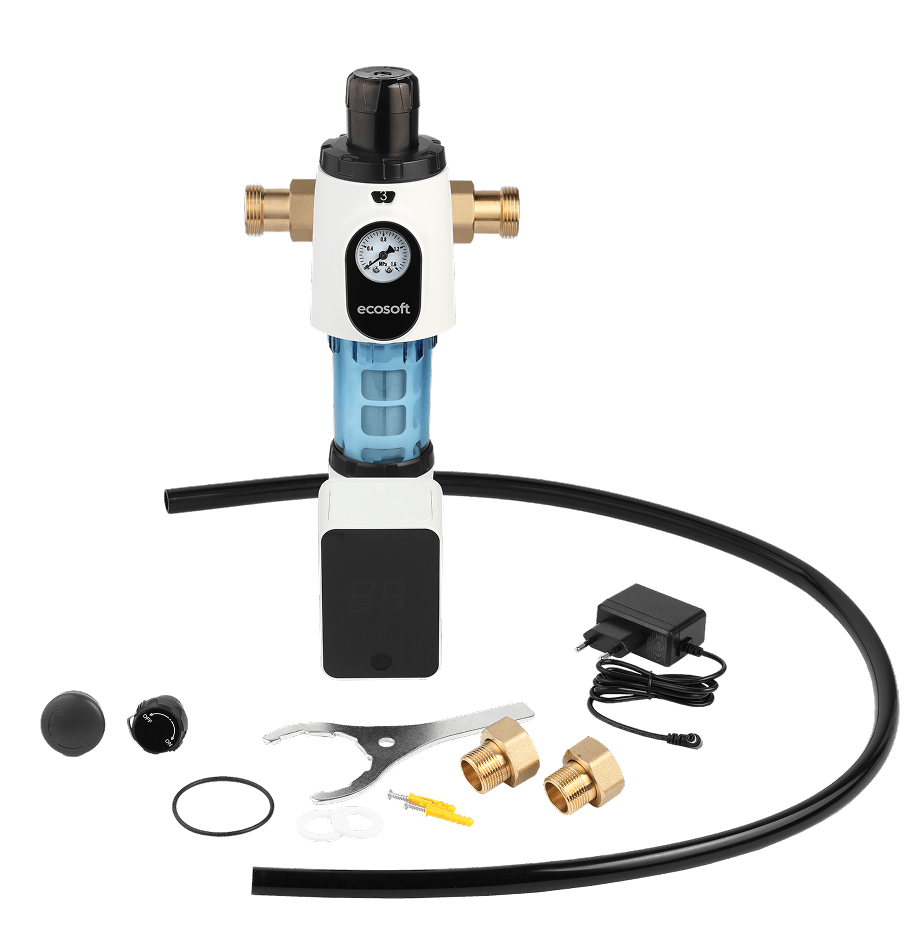

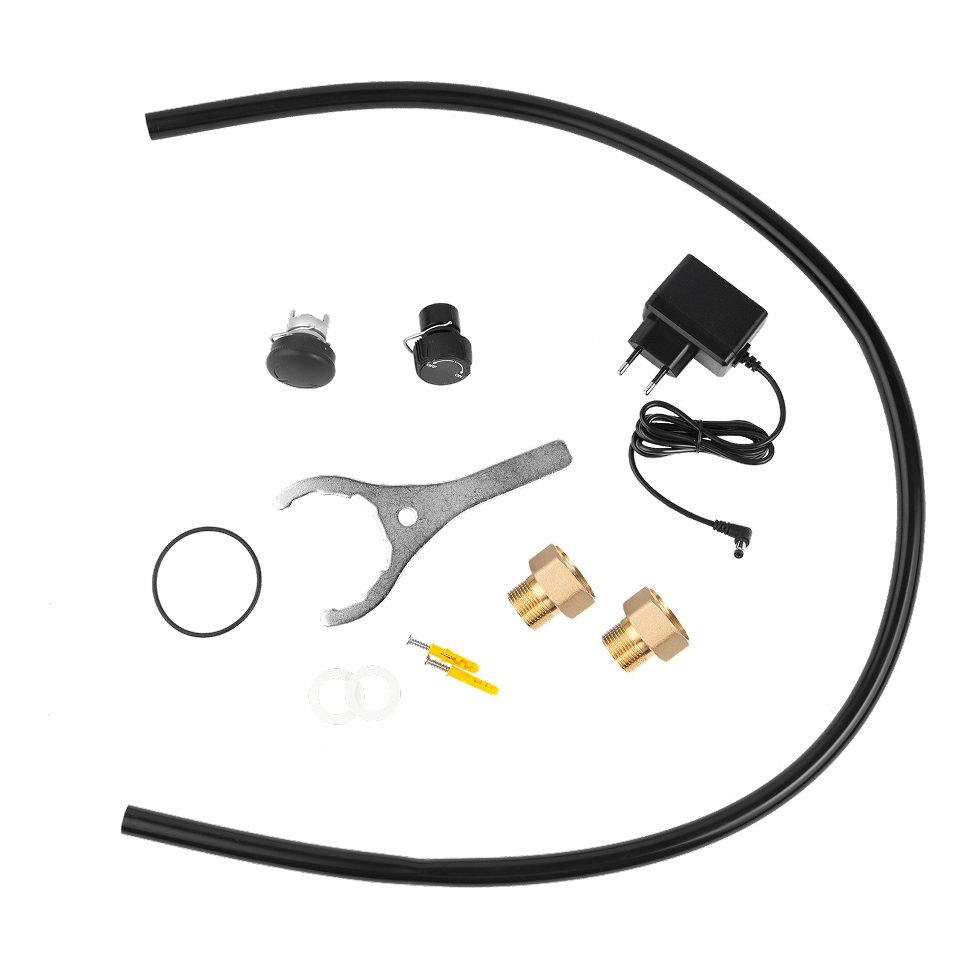

- Package Includes: Filter, cartridge, pressure gauge, control module
Additional features

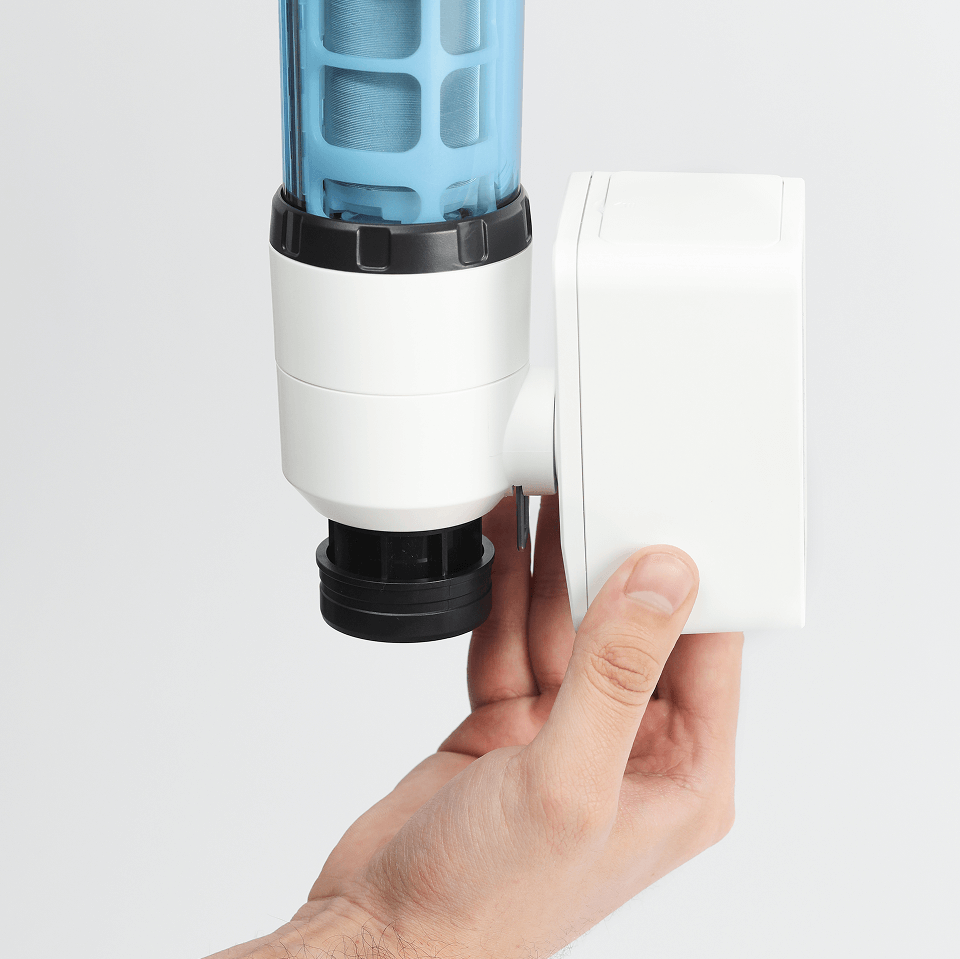

- Battery-powered control module – No need for wiring, easy to install anywhere

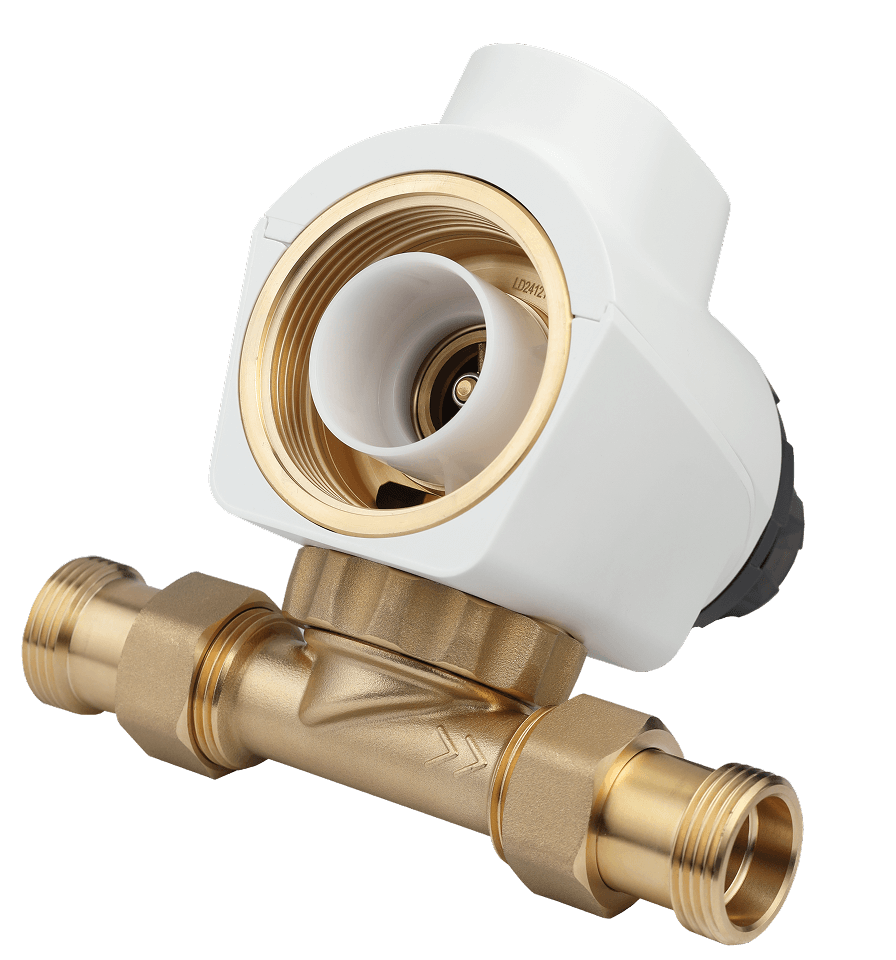

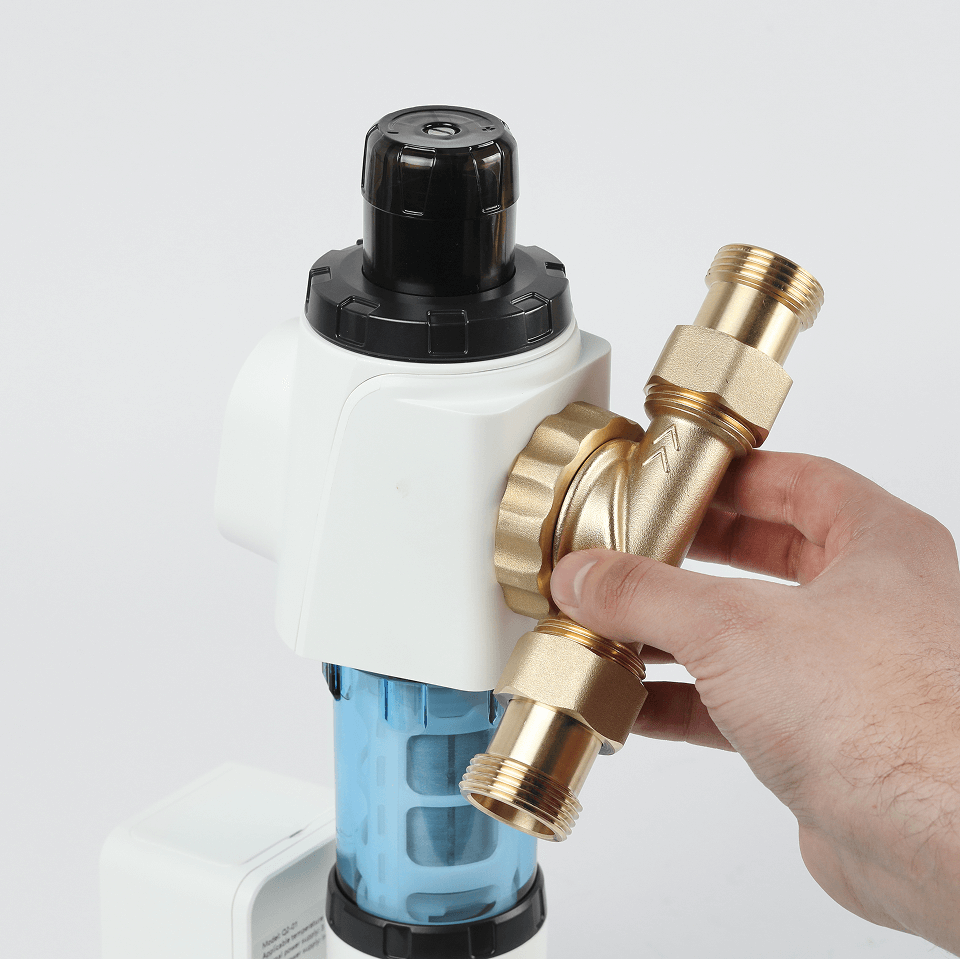

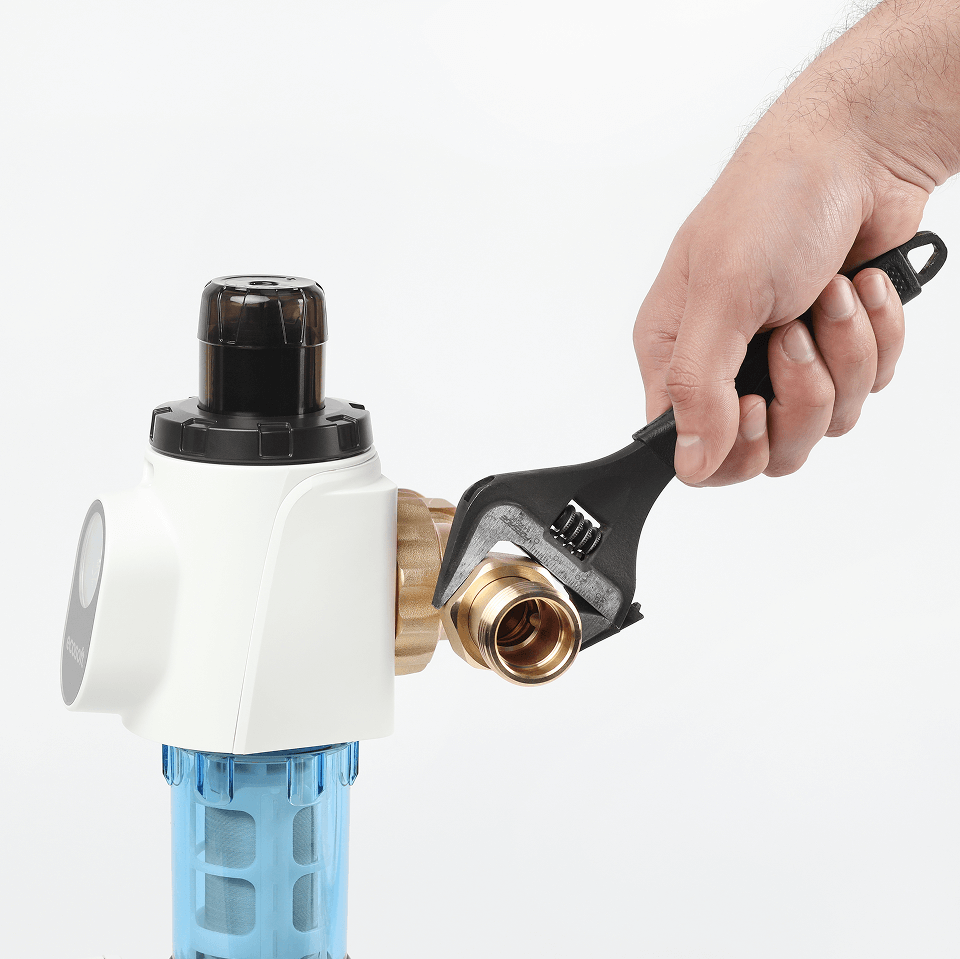

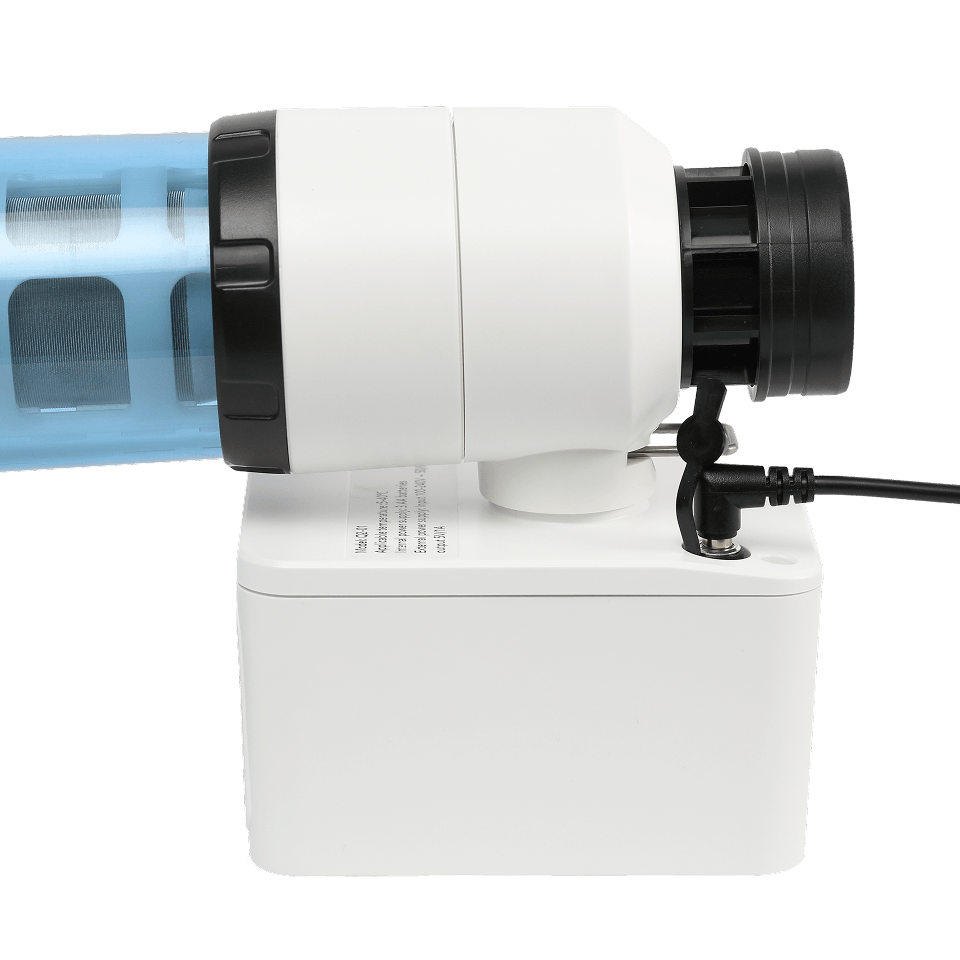

- 360° connection module – 1" G thread for easy compatibility
- Wide operating temperature – Works in environments from +5°C to +40°C
- Operating pressure – Works efficiently with a pressure range from 1.5 bar to 10 bar
The Ecosoft ERIC SC requires minimal maintenance due to its automatic self-cleaning system. However, to ensure long-term performance, follow these guidelines:

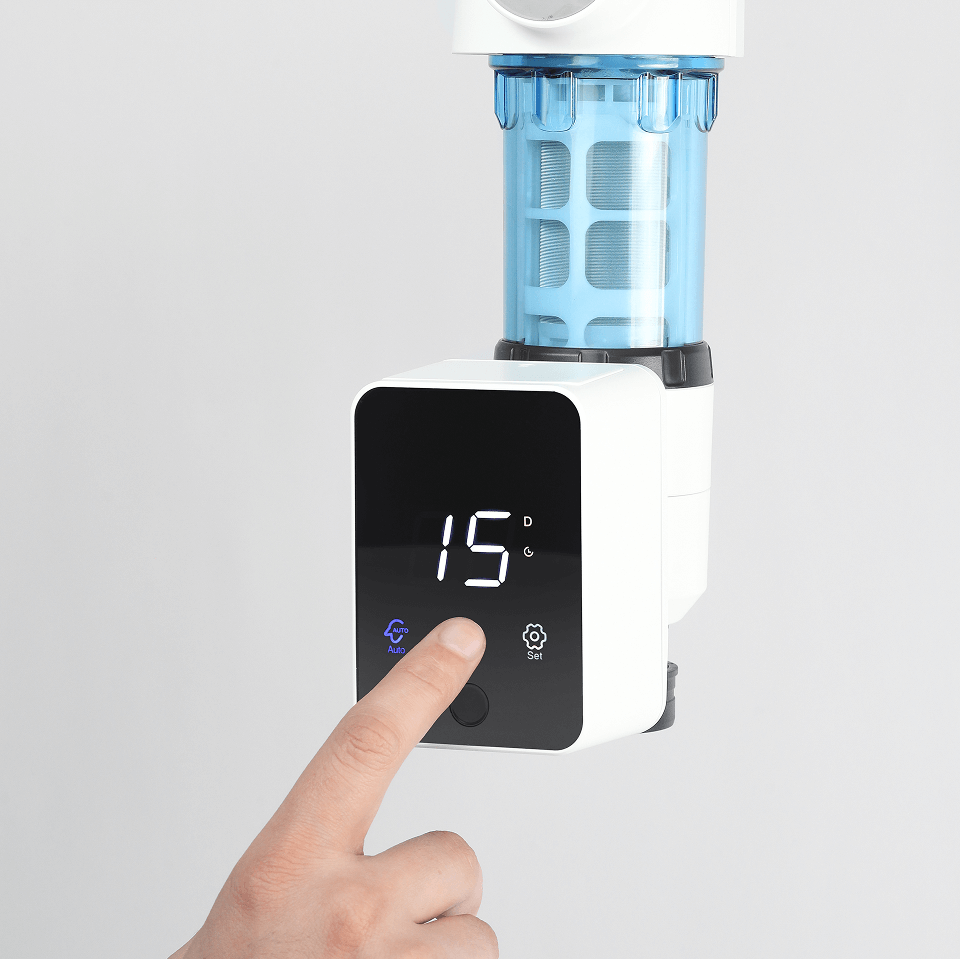

- Flush cycle setup: Program the flushing frequency according to water quality (recommended every 7–30 days).

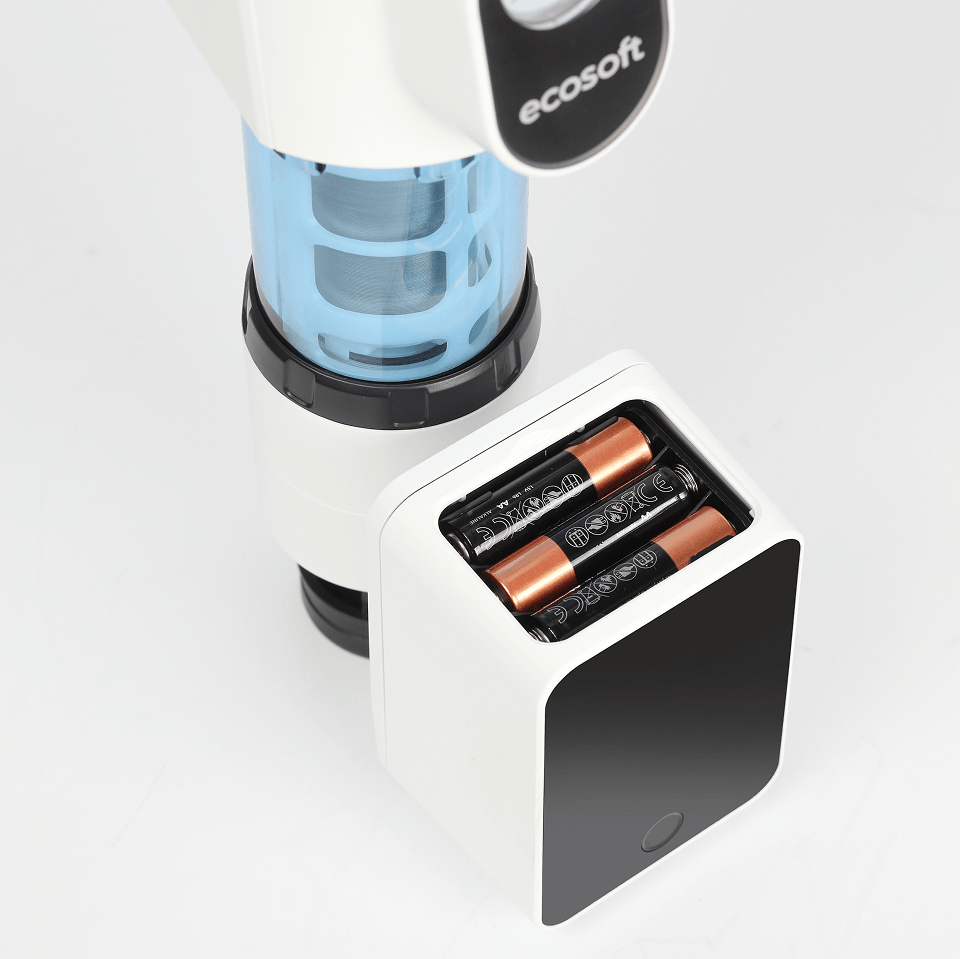

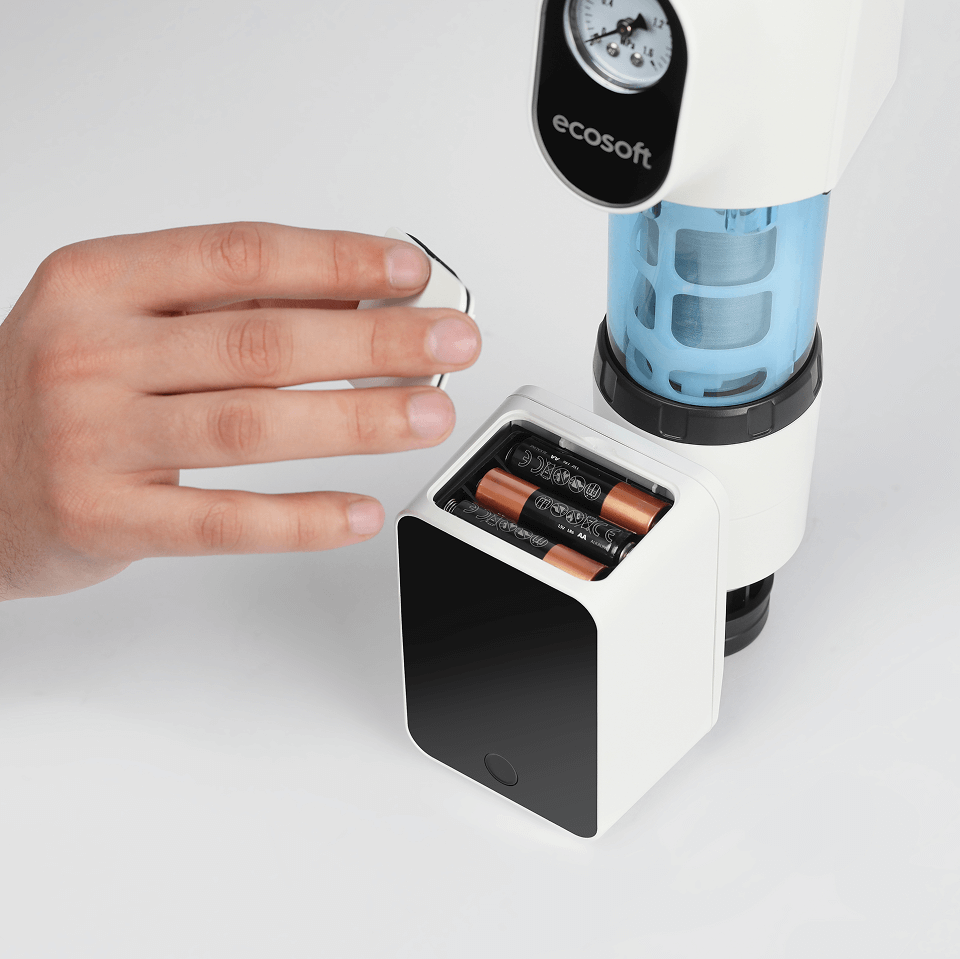

- Battery replacement: The control module operates on 3×AA batteries, which should be replaced approximately once a year.

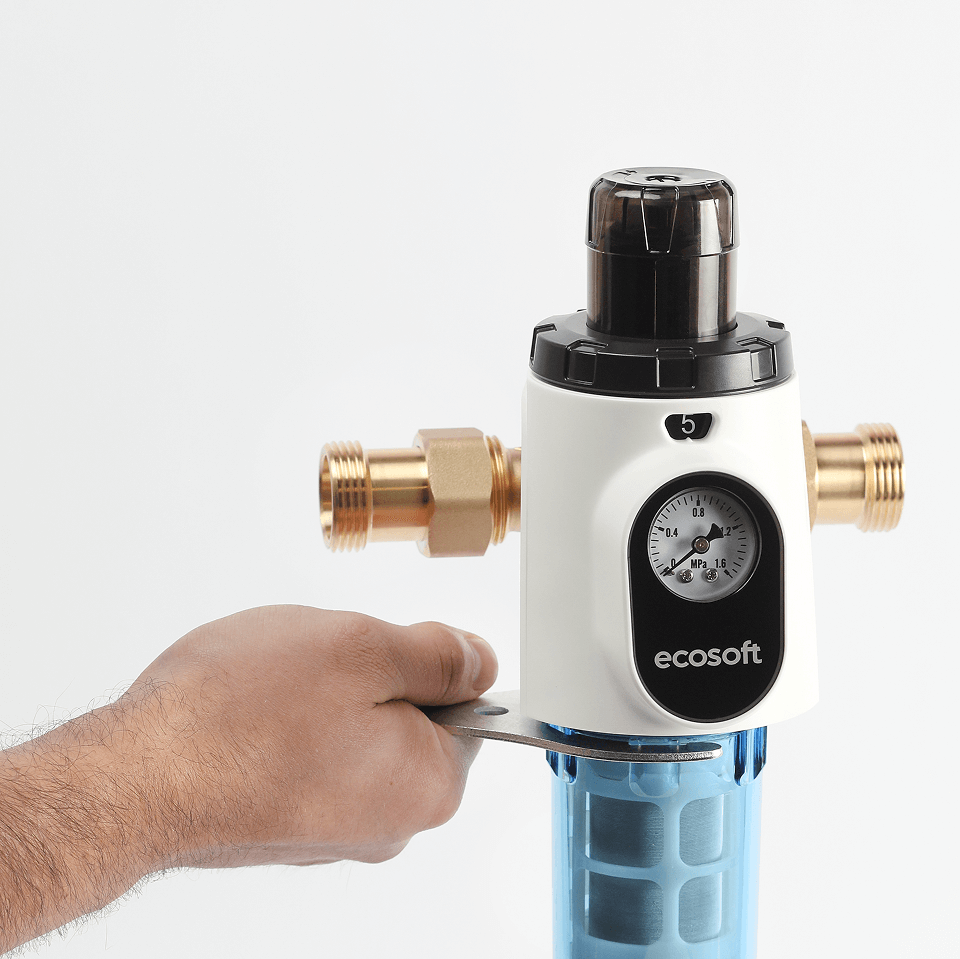

- Pressure gauge check: Regularly monitor the built-in pressure gauge to ensure stable system operation.

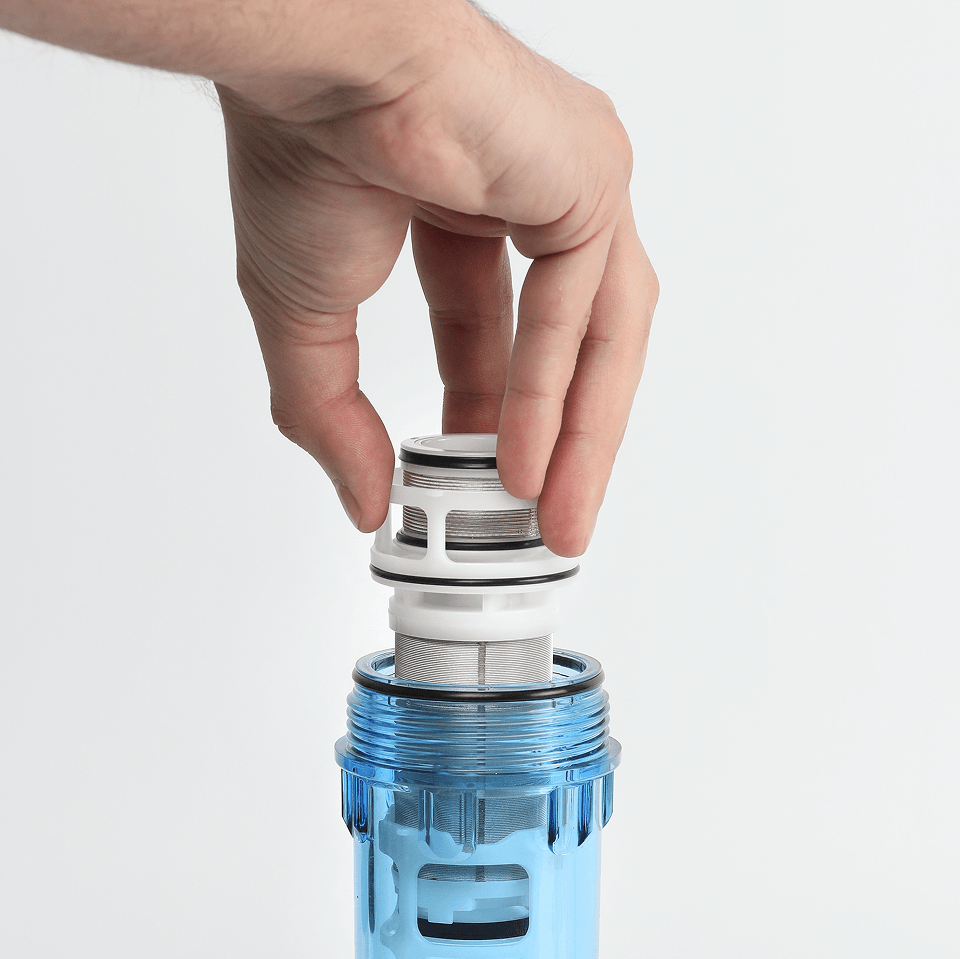

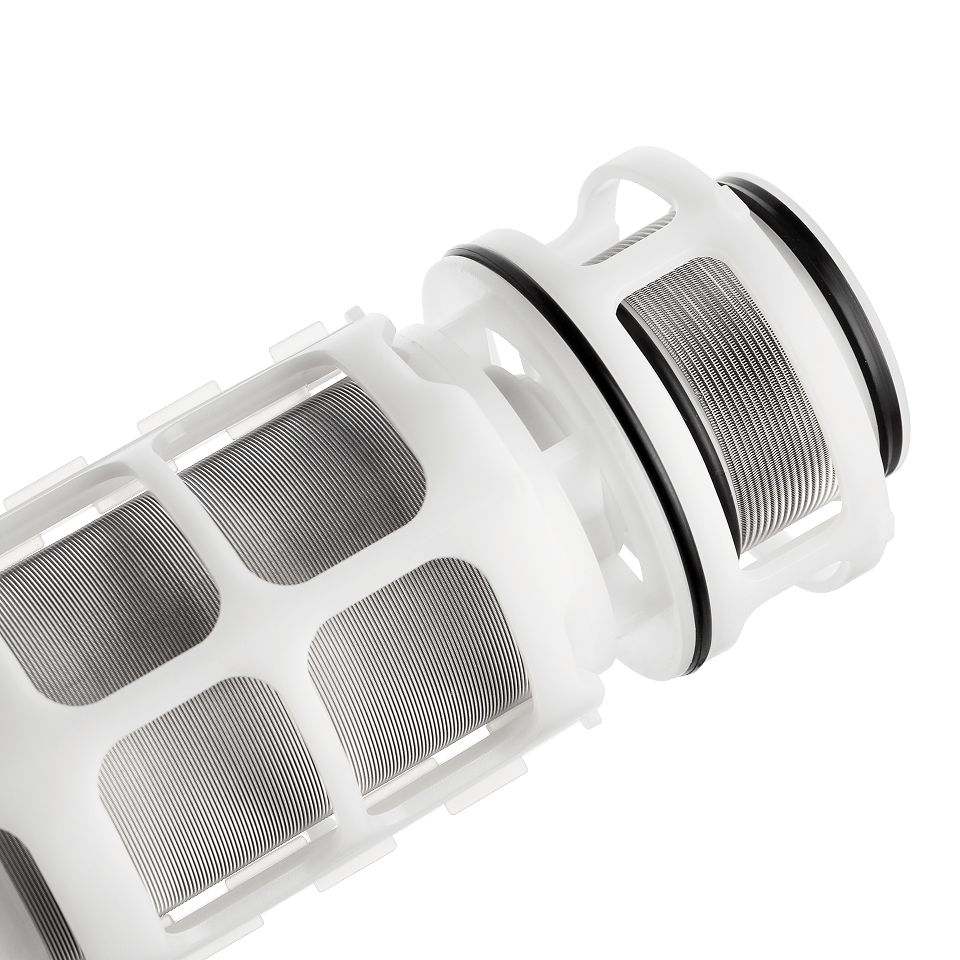

- Cartridge cleaning: The stainless steel 40-micron cartridge is highly durable, but occasional manual rinsing may be necessary if water contains excessive sediment.
The ERIC SC does not require frequent cartridge replacement. The stainless steel mesh ensures long-term filtration performance, making it a cost-effective and low-maintenance solution.
