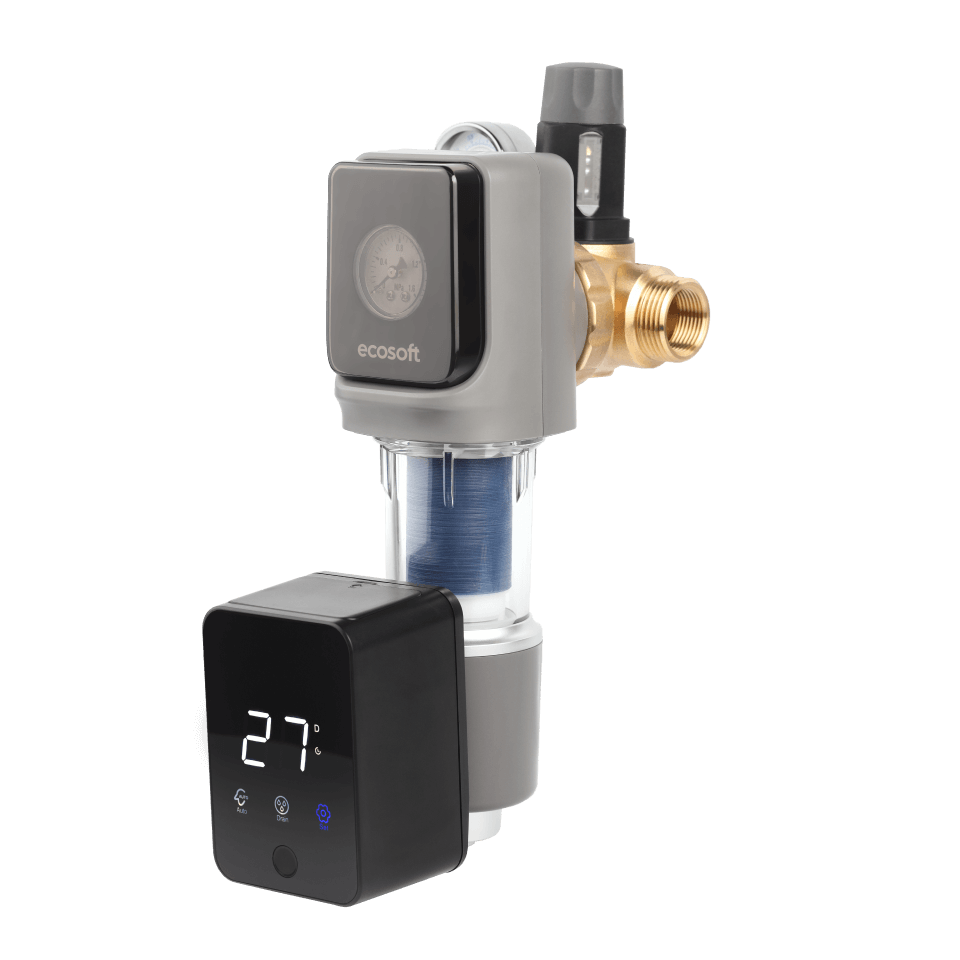

The ERIC DC is a high-performance sediment filter designed to tackle problem water effectively. It removes dirt, sand, and rust, ensuring cleaner and safer water for your home. Fully automatical flushable are making it long-lasting and cost-effective. It is also iron resistant, preventing clogging and maintaining optimal performance over timeintervention
Water source: Tap or well water supply. Suitable for water with a high iron content.

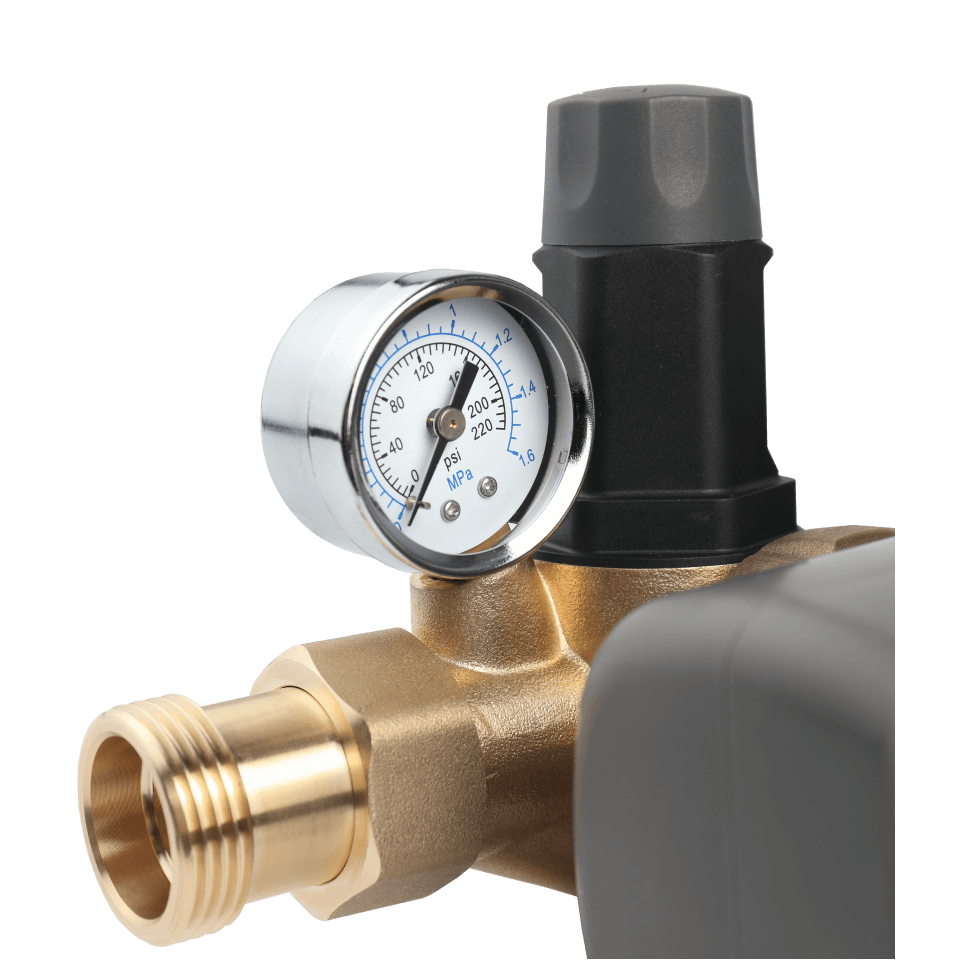

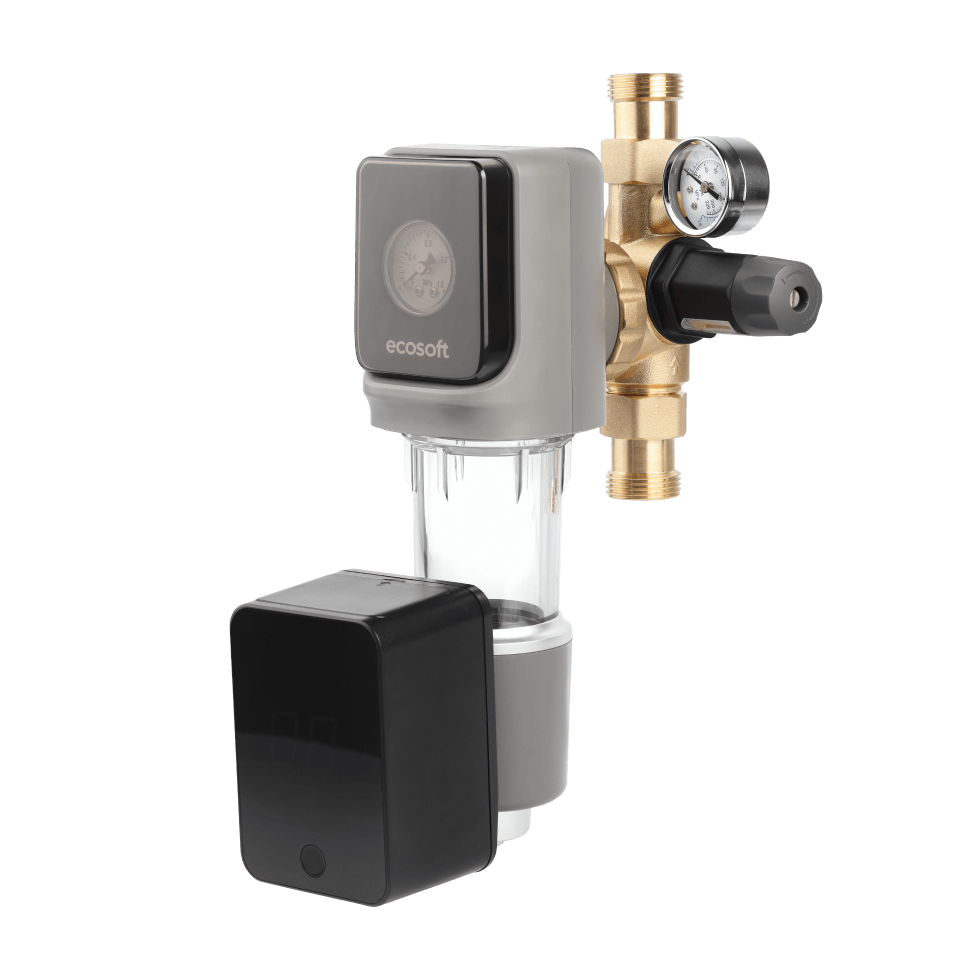

The ERIC DC uses a 40-micron polymer disc filtration system to trap sediment, dirt, and rust particles while allowing clean water to pass through. The automatic flushing system prevents clogging by reversing the flow and removing accumulated debris. The built-in pressure gauge ensures stable operation and prevents damage to downstream equipment.
Filtration process:
- Sediment filtration – Captures particles down to 40 microns, removing dirt, sand, and rust.
- Reverse backwash cleaning – Automatically loosens and flushes out trapped debris.
- Smart flush control – Customizable flush intervals maintain efficiency and longevity.
Technical Specifications
- Clamping: Threaded
- O-ring: NBR 70
- Max. Working Pressure: 10 bar
- Working Temperature: From 5°C (41°F) to 40°C (104°F)

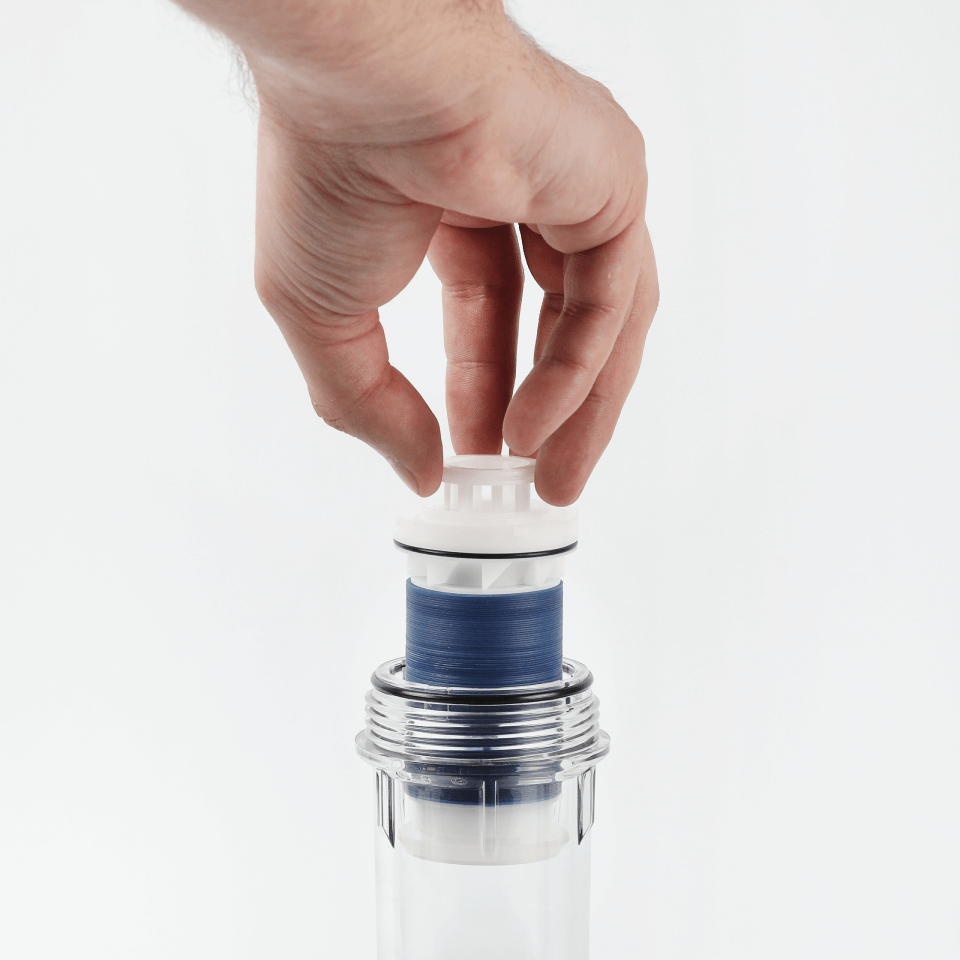

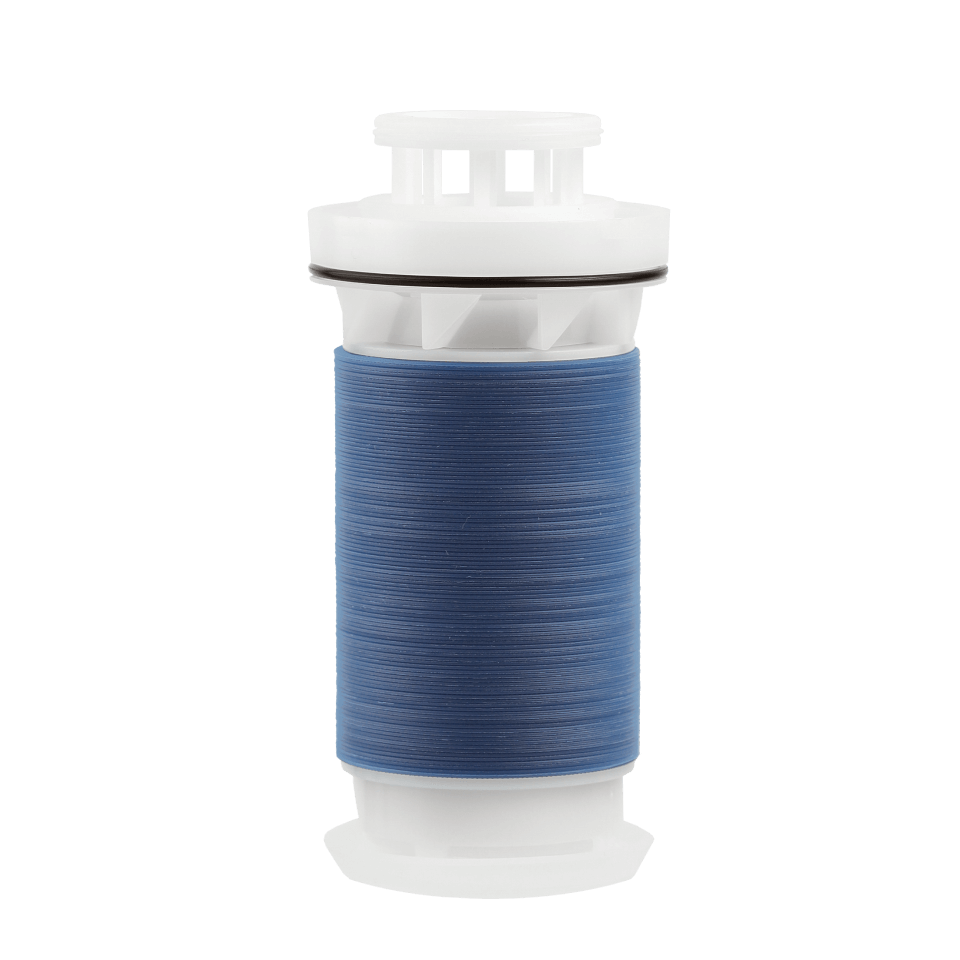

- Cartridge: Polymer disc cartridge
- Cartridge Type: Washable
- Maintenance: Automatic flushing

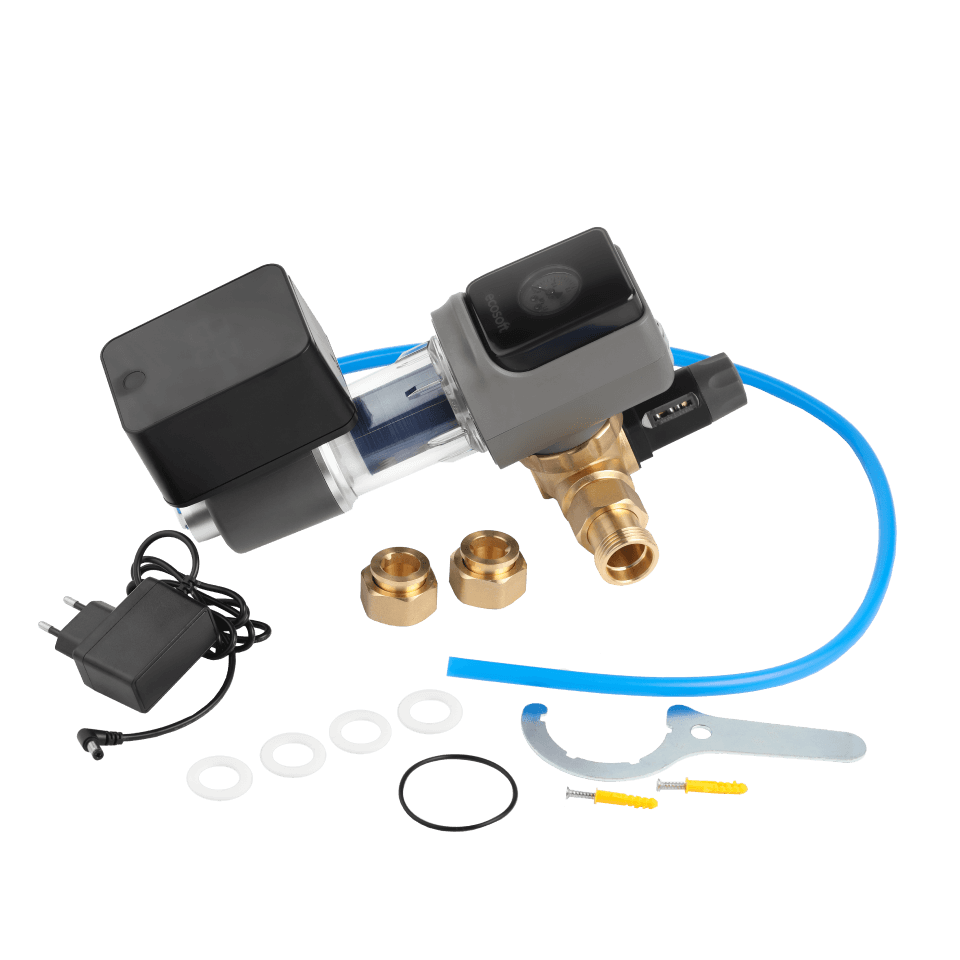

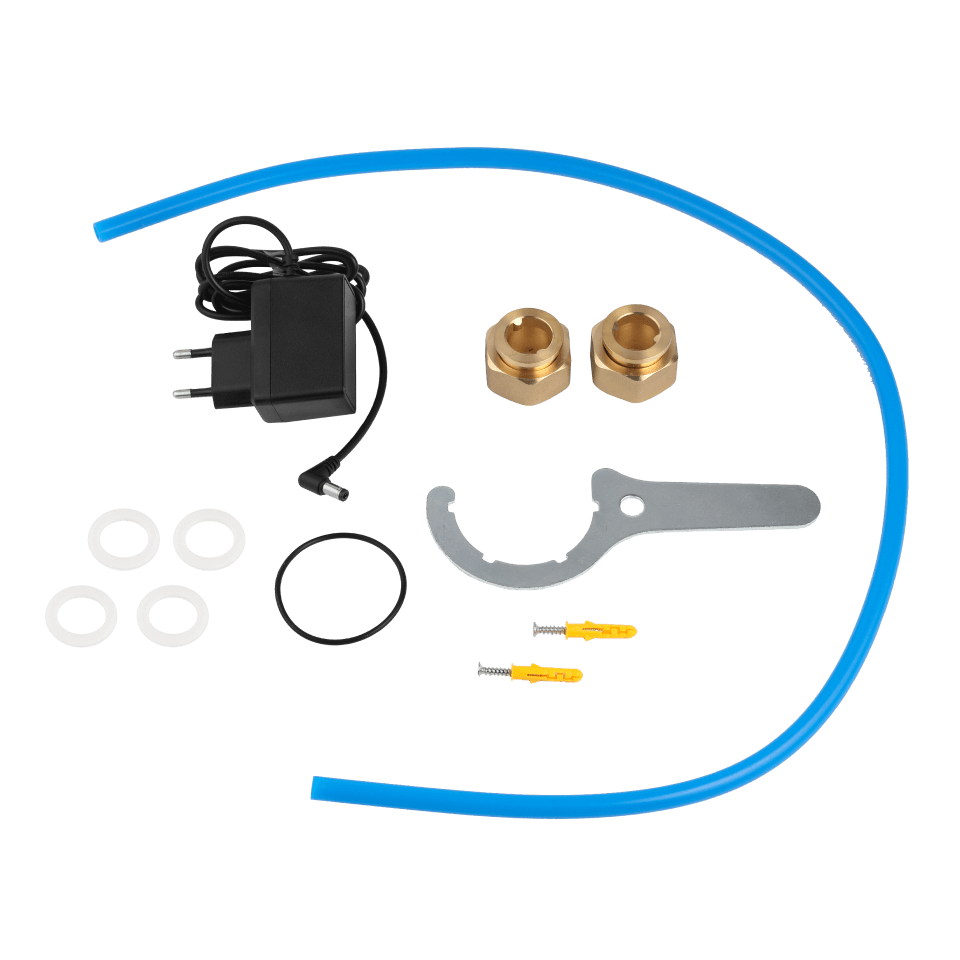

- Package Includes: Filter, cartridge
- IN/OUT Threads: 1" G thread with ¾" adapter
- Filtration Rating: 40 µm
- Flow Rate: 4 000 l/h
Flushing Modes

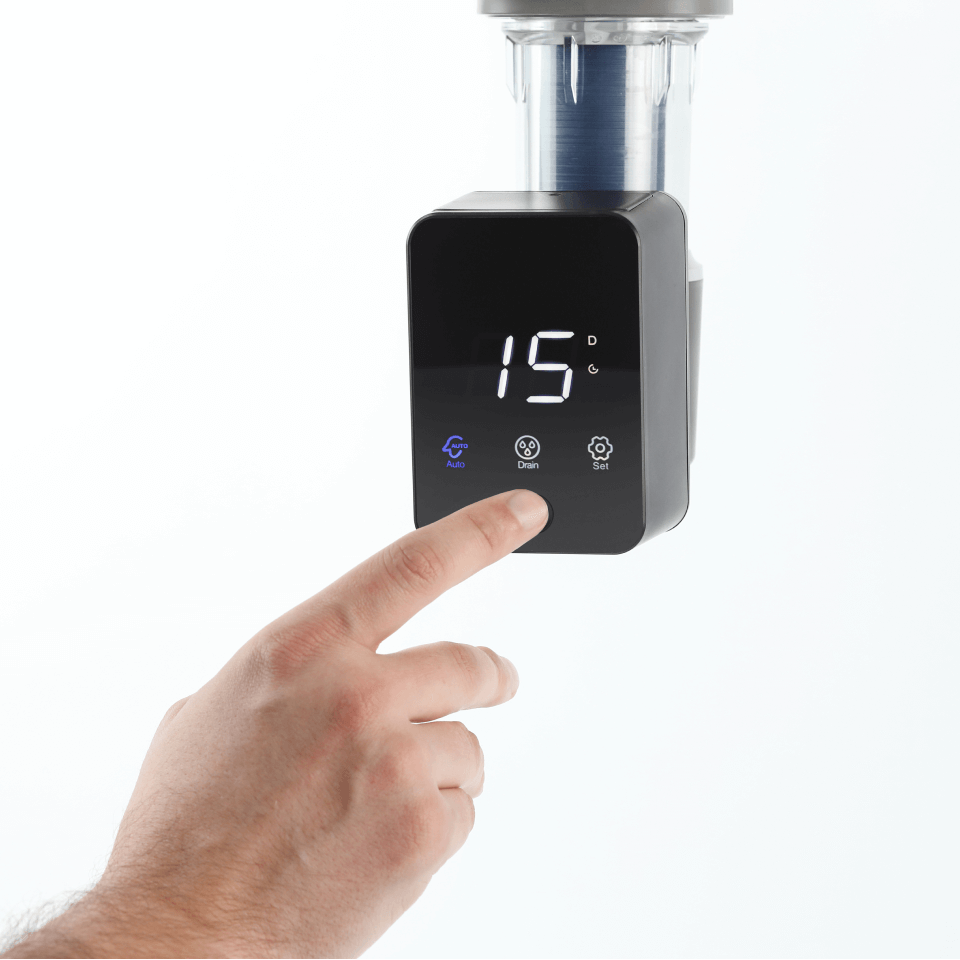

- Scheduled flushing – Set by user preferences (by days and time).
- Pressure-based flushing – Activates automatically when pressure reaches a critical level.
Additional features

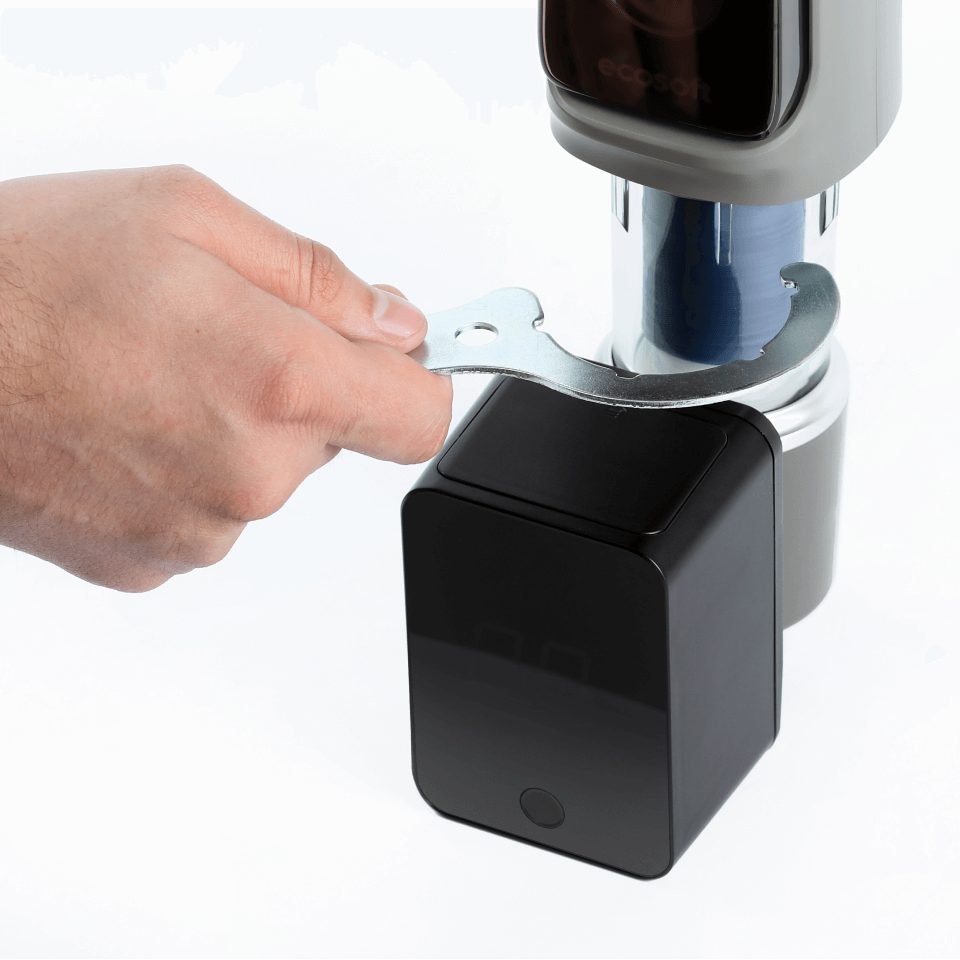

- Battery-powered control module – No need for wiring, easy to install anywhere.

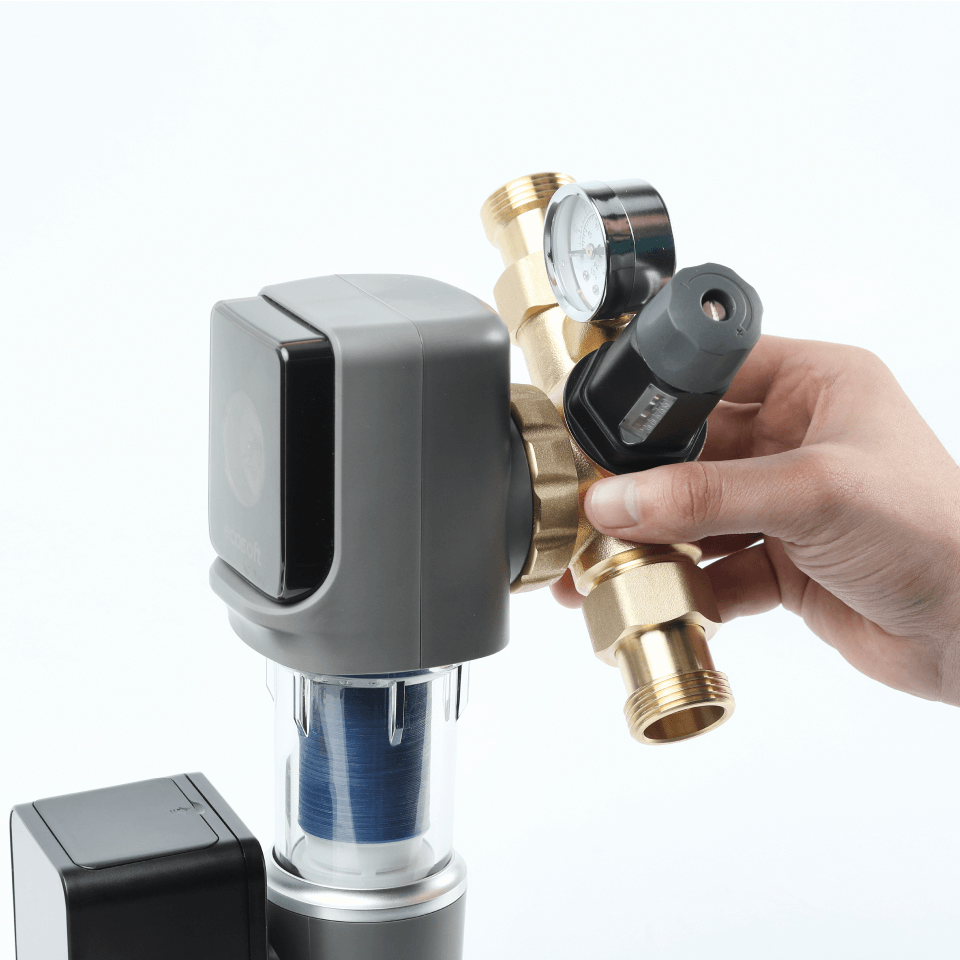

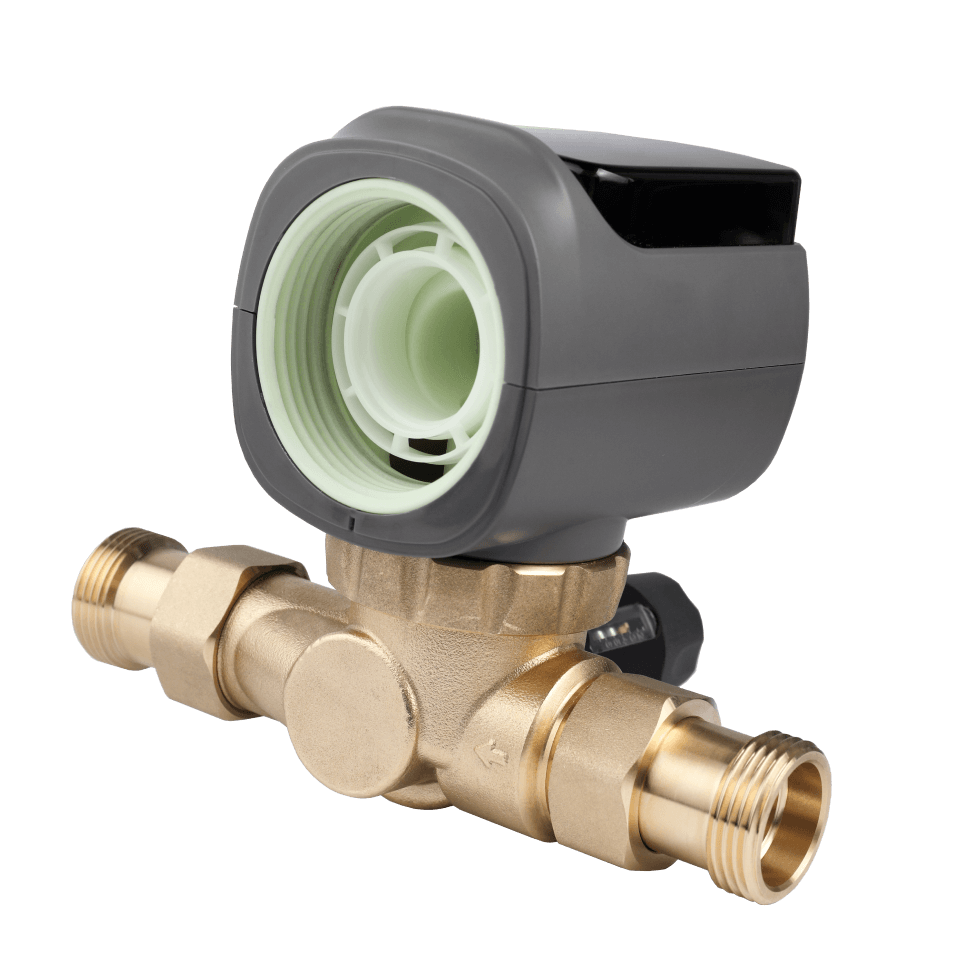

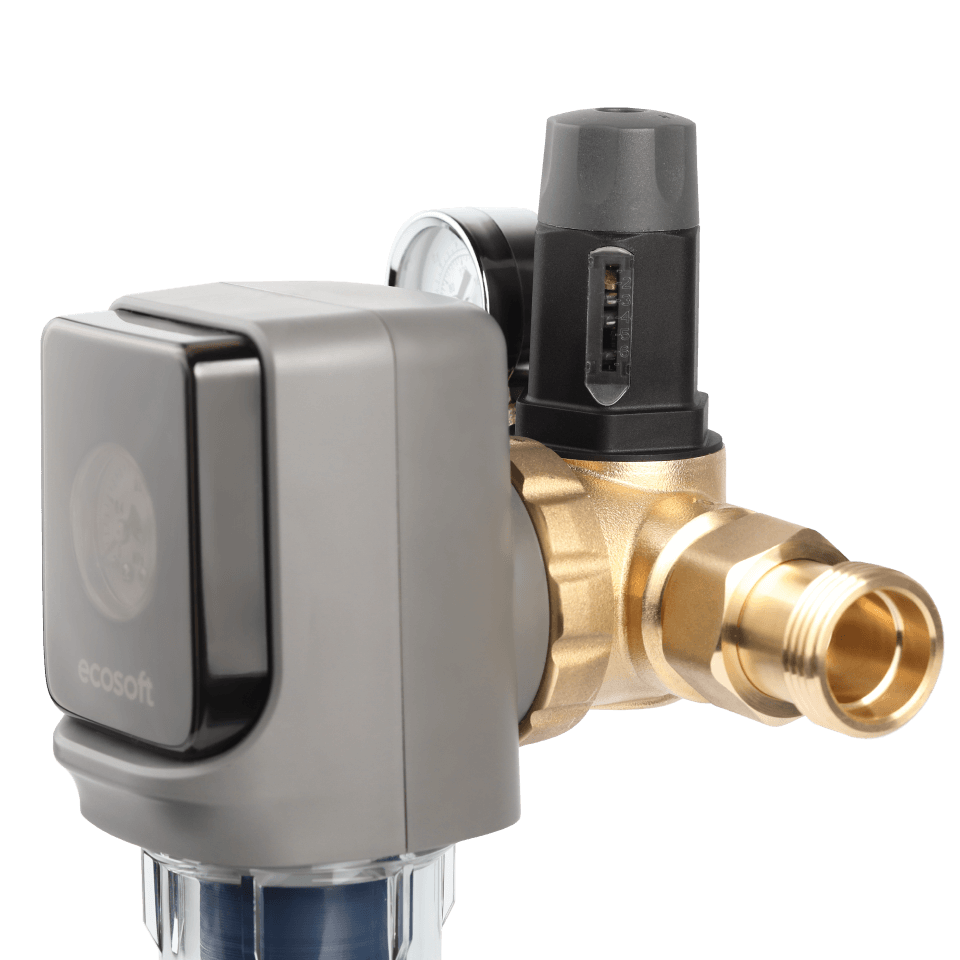

- 360° connection module – 1" G thread for easy compatibility with ¾” extra connector.
- Wide operating temperature – Works in environments from +5°C to +40°C.
- Operating pressure – Works efficiently with a pressure range from 1.5 bar to 10 bar.
The ERIC DC flushable water filter requires minimal maintenance due to its automatic cleaning system. However, periodic checks of the pressure gauge and flushing mechanism will ensure optimal performance.
Maintenance recommendations:
- Check and clean the pressure gauge regularly.
- Ensure the flushing mechanism is working correctly.
- Inspect connections and seals for leaks.
By following these simple maintenance steps, you can ensure continuous access to clean and safe water while extending the lifespan of Ecosoft ERIC DC filter.
