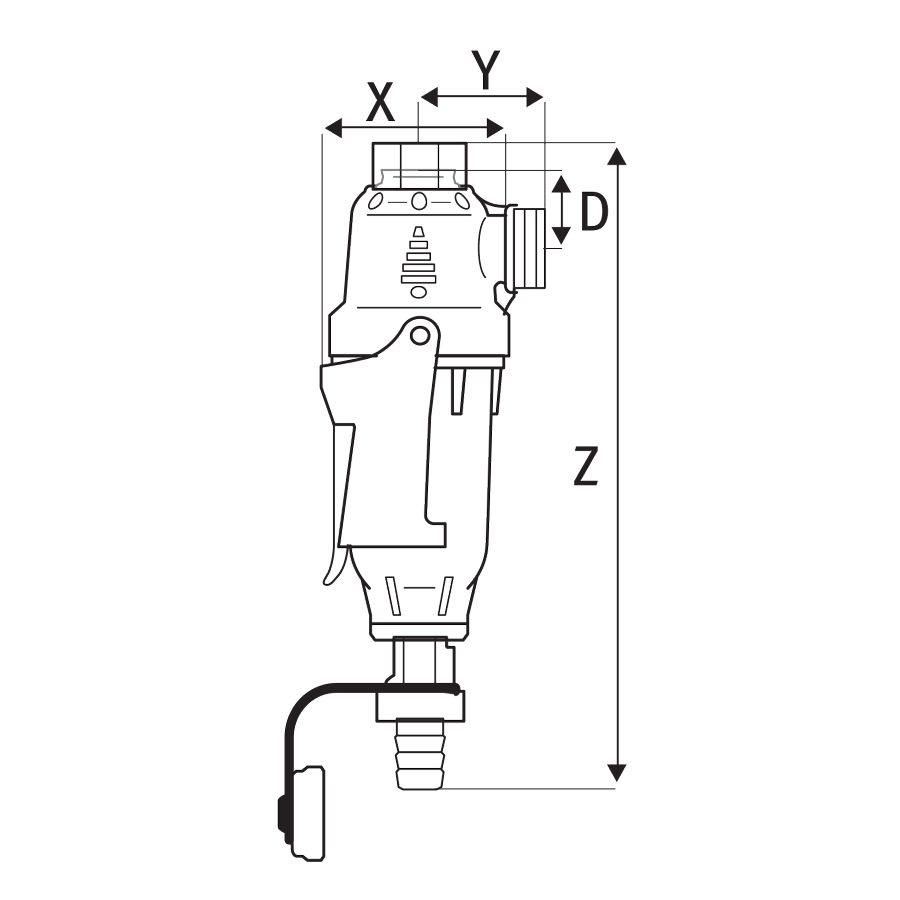

Dimensions
Image Size
DIMENSIONS, H×W×D:
224 x 65 x 41
mm
Filter weight
1
kg
All media (15)
Dimensions
DIMA PRO sludge filter is engineered to protect domestic heating systems and boilers. It is installed on the return circuit feeding after the last radiator. The stainless steel cartridge, coupled with robust neodymium magnets, efficiently removes both metallic and non-metallic particles, particularly rust and sand.
Ideal corrosion protection and effective sludge removal
Compact design
Low pressure drop
Hot water filtration up to 90°C
Fast and simple maintenance with the mobile cover
Compatible with all boilers with a fixed mounting distance of 28 mm
Show More Features
Product
Image Size
DIMENSIONS, H×W×D:
224 x 65 x 41
mm
Filter weight
1
kg
Technical specifications
- Head: Reinforced heat-stabilized PA* 66 (white)
- Clamping: Threaded
- Bowl: Reinforced heat-stabilized PA* 66 (white)
- O-ring: NBR 70
- Max. Working Pressure: 3 bar
- Working Temperature: From 5°C (41°F) to 90°C (194°F)
- Cartridge: SS** AISI 304
- Cartridge Type: Washable
- Maintenance: Quarterly
- Duration: 24 months
- Package Includes: Filter, cartridge, service wrench, two ball valves
- IN/OUT Threads: ¾” MF 90°
- Filtration Rating: 800 µm
- Flow Rate: 2 000 l/h
*Nylon
** Stainless steel
DIMA PRO MAGNETIC SLUDGE FILTERS IN OTHER SIZES
- FFNN2P5506 - DIMA PRO PA Filter with Brass Insert ¾" – 600 Micron:
- IN/OUT Threads: ¾” MF 90°
- Filtration Rating: 600 µm
- Flow Rate: 1 800 l/h
- FFNN2P5507 - DIMA PRO PA Filter with Brass Insert ¾" – 1000 Micron:
- IN/OUT Threads: ¾” MF 90°
- Filtration Rating: 1 000 µm
- Flow Rate: 2 500 l/h
FFNN2P5505
DIMA PRO PA filter with brass insert ¾" – 800 micron
-
