All media (21)

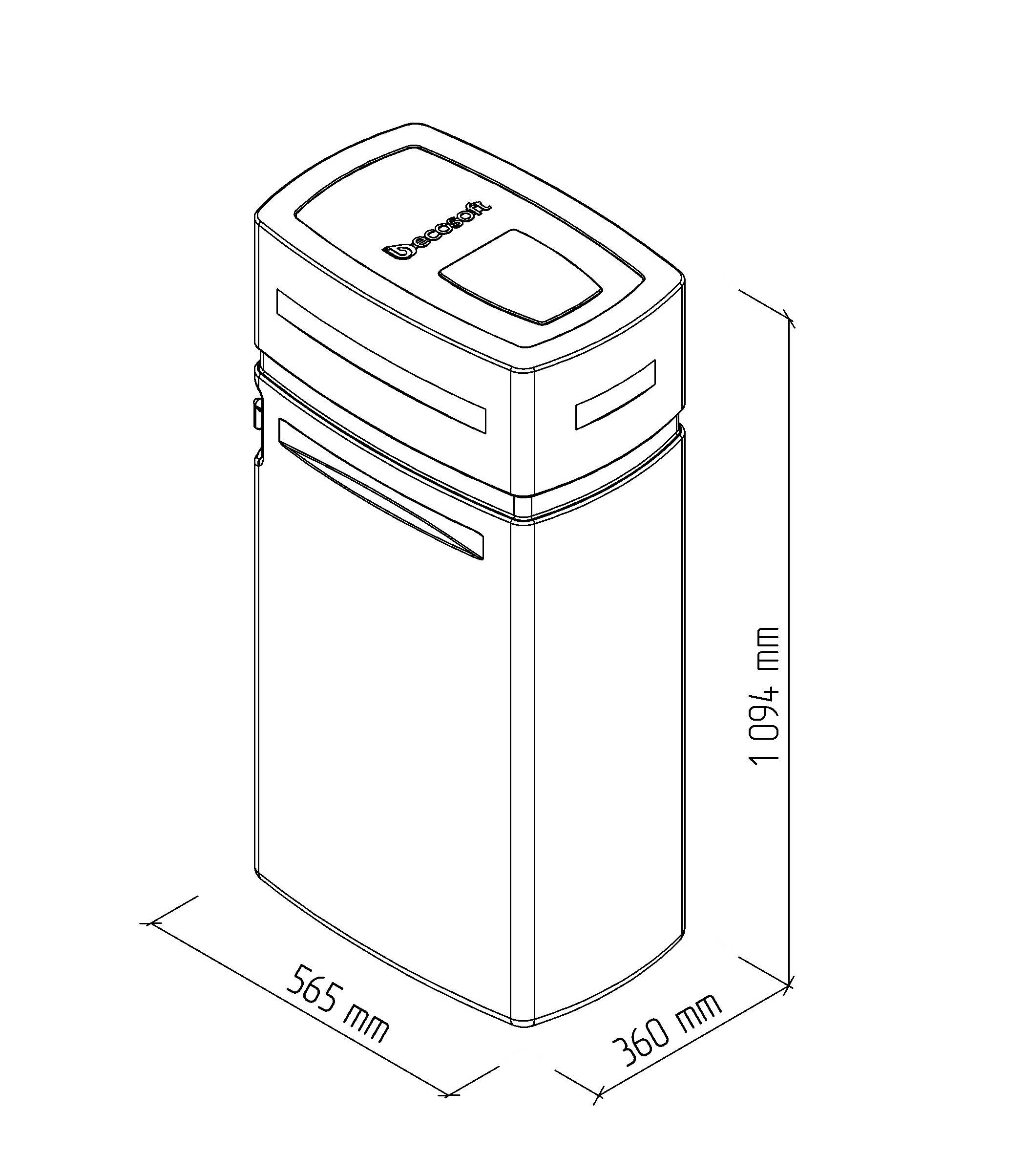

Dimensions
Image Size
DIMENSIONS, H×W×D:
1094 х 360 х 565
mm
Filter weight
30
kg
All media (21)
Dimensions
A high-flow capacity filter for treatment of challenging water at home. ECOMIX® А reduces hardness, iron, manganese, organic matter, and ammonium. Low salt consumption and increased salt tank capacity allow it to run for 7 months before the next salt refill.
Made in Belgium
Reliable US-made Clack® DV valve
Increased salt capacity: up to 130 kg
Comfortable design that complements any interior
Show More Features
Flow rate
1.0–1.2
m³/h
Quantity of resin
25
L
Volume capacity
3.0
m³
Usage of salt per regeneration
2.5–4.0
kg
Operating time before salt refill
7
months
Usage of water per regeneration
0.25
m³
Product
Box
Palette
Image Size
DIMENSIONS, H×W×D:
1094 х 360 х 565
mm
Filter weight
30
kg
Image Box
Dimensions, H×W×D:
1092 х 363 х 600
mm
Filter weight
36
kg
Image Palette
Pieces on pallet
5
pcs
Weight on pallet
215
kg
Purification technology
ECOMIX® A — provides iron-free crystal clear soft water with bluish tint. Ecosoft Titanium Gold series filters reduce iron, hardness, manganese, ammonium, and organic matter.
Components
- Pre-adjusted Clack DV
- Cabinet enclosure
- Pressure tank
- Brine well with safety float valve
- Ecomix® A
Technical specifications
- Operating flow rate: 1.0 m³/h
- Maximum flow rate: 1.2 m³/h
- Quantity of ECOMIX®: 25 L
- Volume capacity*: 3 m³
- Usage of salt per regeneration**: 2.5–4.0 kg
- Usage of water per regeneration: 0.25 m³
- Duration of regeneration: 80–110 minutes
- Pressure drop in service mode: 0.5 bar
- Inlet pressure: 2–6 bar
- Electrical requirements: 230 V, 50 Hz
- Power consumption: 30 W
- Inlet/outlet pipe connections: 1’’
*for hardness at 5 meq/L(250 mg/L CaCO₃)
**it is recommended to use Ecosil pelletized salt for regeneration
Feed water requirements
- Hardness: ≤15 meq/L (750 mg/L CaCO₃)
- Iron: ≤15 mg/L
- Manganese: ≤3 mg/L
- Chemical oxygen demand: ≤20 mgO₂/L
- Ammonium: ≤4 mg/L
- Required level of purification of sediment particles: 100 μm
- Initial water temperature: +4…+30 °С
FK1035CABGDVMIXA
Anthracite Gold 250 well water softener
£ 1,20990
